Johansson 8210 - HDMI Streamer

Johansson 8210

HDMI Streamer

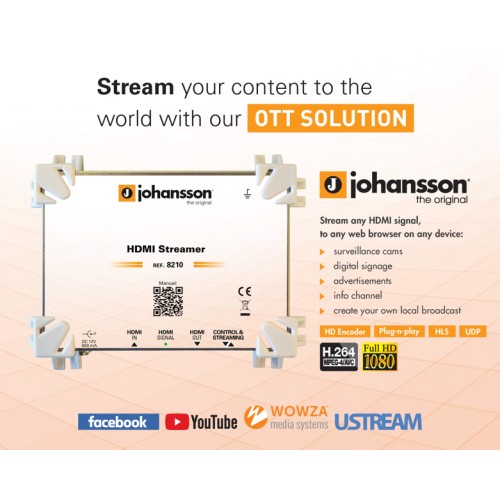

The Johansson 8210 is designed for small to medium-sized projects. It is a High Definition Video and Audio Encoder that makes it easy to put your HDMI source on a (local) network and/or internet. This gives the end-user the flexibility to see your real-time video content on their preferred (mobile) device: smartphone, tablet, laptop or TV. The end-user can simply surf to a dedicated webpage or streaming service. No need to install a mobile application or additional software, it works on any web browser.

Interesting for local video (surveillance cams, digital signage, advertisements, info channel, creating your own local broadcast, etc) and for streaming to live platforms (e.g. vFacebook Live, YouTube Live, Ustream, Wowza, etc).

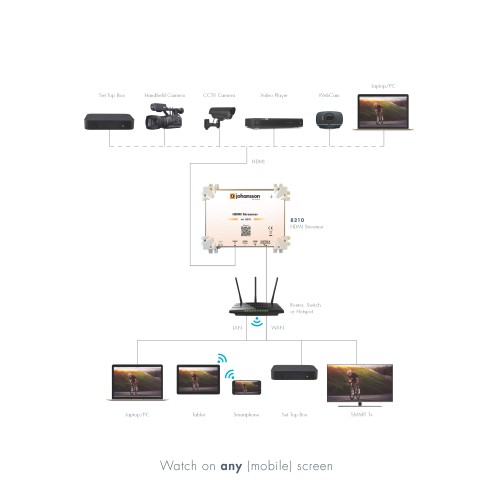

How it works:

• Enable a HDMI source on your local network using the built-in webpage (HLS unicast)
• Multicast a HDMI source for an IPTV application (UDP multicast)
• Publish your live stream to an online platform (RTMP)
• HDMI loop-through for simultaneous viewing on a local TV

Watch the video here:

Features

Inputs: 1 x HDMI

Outputs: 1x IP Ethernet RJ-45 jack (for streaming WebGUI), 1 x HDMI loopthrough

HDMI input: Video resolution : 576i up to 1080p, Video encoding : H264/AVC, Video bitrate Encoding: from 1 Mbps to 30Mbps, Audio encoding : MPEG2, Audio bitrate Encoding 32 -192 Kbps

Streaming port (Mbps): 10/100

Ethernet OTT encapsulation: HLS (Apple HTTP Live Streaming) (unicast)

Ethernet multicasting: Possible to output UDP multicast (requires external IGMP snooping equipment)

Simultaneous users: Up to 30 (depending on the bitrate and the network infrastructure)

Input resolution: Up to 1080p60

Supported playback (0): All HTML 5 browsers on Android/iPhone/Mac/PC/SmartTV/… No need to install mobile application or additional software

Configuration: Network/login/input encoder settings/output multicast settings

Power consumption (W): 5

Operating temperature (°C): 0 to +50 (for indoor use only)

Dimensions (mm): 155 x 120 x 50 mm

Weight (Kg): 0.6

The set contents

1x Johansson 8210 - HDMI Streamer

1x Power adapter cord

1x Instruction Manual
