Johansson 6712 - Profino Revolution SAT

Johansson 6712 - Profino Revolution SAT

Programmable terrestrial filter amplifier

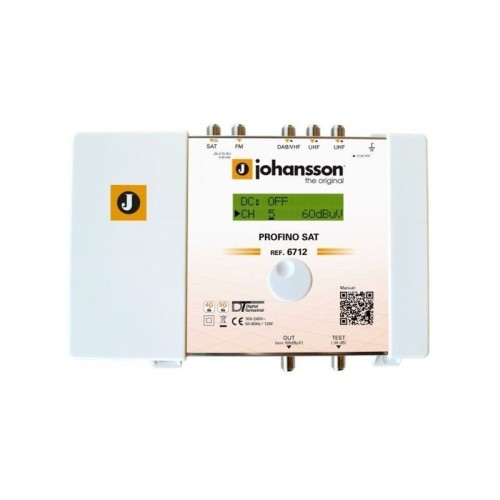

Johansson 6712 Profino Revolution SAT is an easy to use programmable filter amplifier and convertor for terrestrial signals. The module optimizes satellite, terrestrial VHF/UHF and FM signals from multiple inputs with the goal to provide high quality images on your TV screen. The Profino Revolution SAT is a light version digital Profiler. Up to 20 Channels can be filtered and amplified. Channel conversion is not possible, but the filters on adjacent channels are extremely sharp.

Feautures of profiler revolution sat

• 5 inputs: 1SAT + 1 FM + 1 DAB/VHF + 2 UHF / 20 Channels / AGC / 12-24 V remote power
• Read-out of input level strength: no need for field strength meter

• Can process up to 20 channels (Terrestrial and Satellite)
• Sharpest filters on the market (50 dB on adjacent channels)
• Real-time AGC on all individual multiplexes
• Flex matrix: complete flexibility in assigning filters from any input
• Made in Europe, for worldwide application
• The Profino Revolution SAT is really easy to install

Specifications

Features

Inputs: 1 SAT + 1 FM + 1 DAB/VHF + 2 UHF

Outputs: 1 main (SAT-FM-DAB-VHF-UHF) + 1 test port (-30dB)

Frequency range (MHz): SAT: 950 - 2400 , FM: 88 - 108 , VHF:174 - 240 , UHF: 470 - 862

LTE protection (MHz): Automatic selection: 694, 790 or OFF

Input level (dBµV): SAT: 40 - 95 , FM: 37 - 77 , VHF: 45** - 109 , UHF: 45** - 109

SAT output power (-35dBc/IM3 2 carriers) (dBµV): 119

FM output power (60dB/IM3) (dBµV): 113

VHF/UHF output power (60dB/IM3) (dBµV): 115

VHF/UHF output power with 1 MUX (dBµV): 105

VHF/UHF output power with 6 MUX (dBµV): 105

Conversion: No

Gain (dB): SAT: 40 , FM: 35 , VHF: > 60 , UHF: > 60

Gain adjustment: SAT: 20 , FM: 20 , VHF/UHF: Channel AGC

Noise figure  (dB): SAT: 8

General attenuator (dB): 20

Slope adjustment (dB): SAT: 12 , VHF/UHF: 9

Selectivity (dB/1MHz): SAT: 40 (@862 MHz) , VHF/UHF: 35

Return Loss (dB): 10

Output MER (dB): VHF: 35, UHF: 35

ESD protection: All inputs

DC @ VHF/UHF input , DC Load current @ VHF/UHF input (V , mA): 12 or 24 , 100 (total for the 3 inputs)

DC @ SAT input , DC Load current @ SAT input (mA): 13V/18V/Bypass & 0/22 kHz selectable by SWb 300

SD port: No

Operating temperature (°C): -5 to +50

Power Supply , Power Consumption (V , W): 100 - 240 , 12

Dimensions (mm): 217 x 165 x 59

The set contents

1x Johansson 6712 Profino Revolution SAT

1x Power adaptor cord

1x Instruction Manual
