Programmable terrestrial filter amplifier

(Now with AUTO SCAN! SW 1.9.0)

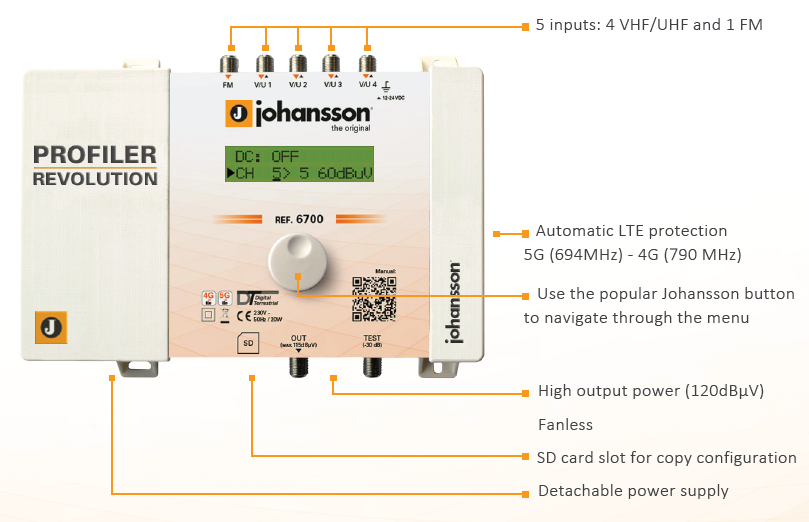

The Johansson Profiler Revolution is an easy to use programmable filter amplifier and convertor for terrestrial signals. The module optimizes terrestrial VHF/UHF and BI+FM signals from multiple inputs with the goal to provide high quality images on your TV screen. The state-of-the-art programmable filter amplifier has no equivalent on the market due to its revolutionary technology: Programmable terrestrial filter amplifier: 5 inputs: BI+FM / 4 x VHF-UHF / > 50 Channels / AGC / 12-24 V remote power.

Feautures of profiler revolution

Specifications

Features

• Inputs - 4 VHF/UHF + 1 BI+FM
• Outputs - 1 main (BI+FM-VHF-S-UHF) + 1 test port (-30dB)
• Frequency range :

                                             BI+FM: 47 - 108MHz
                                             VHF:174 - 240 MHz
                                             UHF: 470 - 862MHz

• LTE protection Automatic selection: 694MHz or OFF
• Input level :

                                            BI+FM: 37 - 77dBμV
                                            VHF: 37* - 109dBμV
                                            UHF: 37* - 109

• Output power   BI+FM                         113dBμV
• Output power (60dB/IM3) VHF/UHF 120dBμV
• Output power (36dB/IM3) VHF/UHF 131dBμV
• Output power with 1 MUX VHF/UHF 118dBμV
• Output power with 6 MUX                   114 dBμV
• Conversion : Yes (from any VHF-UHF channel to any VHF-S-UHF channel)
• Add DAB/VHF/UHF channels - Per 1, 2, 3, 4, 5 or 6
• DAB Subchannel width: 1,7 MHz
• Number of channels - More than 50 (32 filters)
• Gain : BI+FM: 35dB VHF: > 75dB UHF: > 75dB
• Gain adjustment : BI+FM 20dB
• VHF/UHF Channel AGC
• General attenuator: dB 20
• VHF/DAB attenuator: 15dB
• Slope adjustment: 15dB
• Noise Figure: 7dB
• Selectivity : dB/1MHz 50
• Output MER:  VHF: 35dB UHF: 35dB
• ESD protection : All inputs
• Remote voltage for preamp Remote current V mA 12 or 24 100 (total for the 4 inputs)
• Operating temperature °C -5 to +50
• Power Supply Vac 100 - 240
• Power consumption 15W
• Dimensions mm 217 x 165 x 59 Weight kg 0,8
• * For 64QAM with code rate 3/4

The set contents

1x Johansson 6700 Profiler Revolution

1x Power adaptor cord

1x Instruction Manual
