Johansson 7781 - Multiband Distribution Amplifier 1 Cable Input

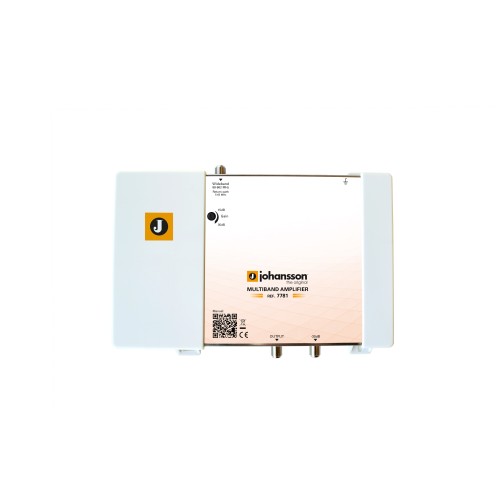

Johansson 7781

Multiband Distribution Amplifier with 1 cable Input and LTE filter

Johansson 7781  is a high output power distribution amplifier (47-862) with separate gain adjustments. The amplifier is fully LTE-ready  and have a high gain. This ensures a perfect signal quality throughout the building. The amplifier is far more efficient than its predecessor.

Feautures of multiband amplifier

• 1 inputs: cable (47-862)
• split-band amplifier with interstage attenuators and dynamic range of 20 dB
• high gain, high output power
• high input power to ensure input overload is virtually impossible
• detachable power supply (included)
• compact housing
• -30 dB test output

Features

Inputs: 1 Cable

Outputs: 1 main + 1 test port (-30dB)

Frequency range (MHz): 47 - 862

Gain (dB): 15 - 35

Slope(dB): 5 - 15 (At 15dB gain) , 25 - 35 (At 35dB gain)

Max. Input Power (dBµV): 100

Max. Output Power (dBµV): 116

Noise figure (dB): 7

Return loss (dB): >10

Test Port (dB): -30

Supply voltage (VAC): 100 - 240

Power consumption (W): 8

The set contents

1x Johansson 7781 - Multiband Amplifier 1 Cable Input

1x Power adapter cord

1x Instruction Manual
