Johansson 7784 - Multiband Amplifier 4 Inputs

Johansson 7784

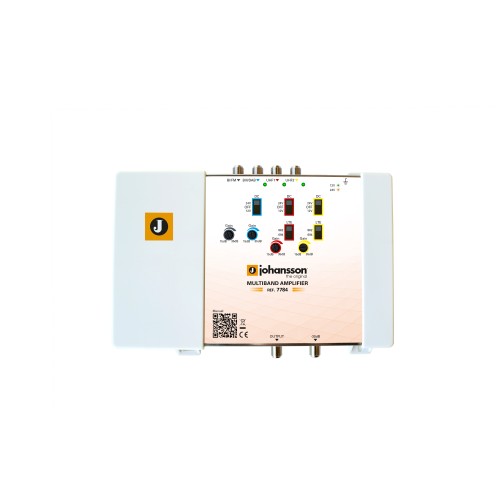

Multiband Amplifier with 4 Inputs and LTE filter

 Johansson 7784 is a high output power distribution amplifier (BI/FM, BIII/DAB, UHF1, UHF2) with separate gain adjustments, DC selection and LTE selection. The  RED compliant amplifier is fully LTE-ready  and have a high gain. This ensures a perfect signal quality throughout the building. This amplifier is far more efficient than its predecessor.

Feautures of multiband amplifier

• 4 inputs: BI/FM, BIII/DAB, UHF1, UHF2
• split-band amplifier with interstage attenuators and dynamic range of 20 dB
• high gain, high output power
• high input power to ensure input overload is virtually impossible
• VDC switchable remote power
• compact housing
• detachable power supply (included)
• -30 dB test output
• RED compliant

Features

Inputs: 4 (BI/FM, BIII/DAB, UHF1, UHF2)

Outputs: 1 main + 1 test port (-30dB)

Frequency range (MHz): BI/FM: 47 - 108, BIII/DAB:174 - 240 , UHF1: 470-694 or 862 (switchable), UHF2: 470-694 or 862 (switchable)

Gain (dB): BI/FM: 10-30, BIII/DAB: 10-30, UHF1: 15-35, UHF2: 15-35

Max. Input Power (dBµV): BI/FM (-60dBc): 94, BIII/DAB (-60dBc): 92, UHF1 (-60dBc): 96, UHF2 (-60dBc): 96

Max. Output Power (dBµV): BI/FM (-60dBc): 118, BIII/DAB (-60dBc): 119, UHF1 (-60dBc): 118, UHF2 (-60dBc): 118

Noise figure (dB): BI/FM: 4.5, BIII/DAB: 4, UHF1: 5.5, UHF2: 5.5

Return loss (dB): >10

Test Port (dB): -30

Remote Power (V): OFF - 12V - 24V

DC Mode (mA): BIII/DAB: 100, UHF1: 100, UHF2: 100

RED selectivity classification: 0 and 1

Supply voltage (VAC): 100 - 240

Power consumption (W): 23

The set contents

1x Johansson 7784 - Multiband Amplifier 4 Inputs

1x Power adapter cord

1x Instruction Manual
