Jolly line 45980/5G-EU - Κεντρικός Ενισχυτής 5G 2 εισόδων

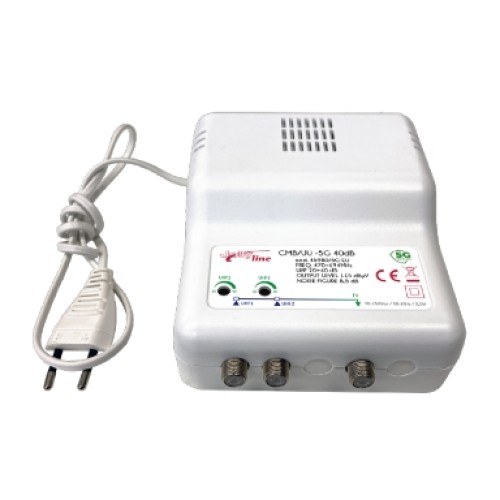

Jolly line 45980/5G-EU

Multiband amplifier with 2 Inputs, 1 Output and 5G filter

The Jolly line 45980/5G-EU multiband amplifier is  designed for use at central facilities for the reception of digital channels with 5G filter. Small dimensions, low energy consumption and features with high linearity and efficiency. With European certification.

Technical specifications

Number of inputs: 2

Number of outputs: 1

Gain: UHF 1: 40 dB, UHF 2: 40 dB

Frequency: UHF: 470 ÷ 694 MHz

Filter: 5G: 694 ÷ 862 MHz, 4G: 694 ÷ 790 MHz

UHF band: 20 ÷ 40dB

UHF band 2: 20 ÷ 40dB

Attenuation: 5G: <20dB

Max output: 115dBµV

Noise figure: 8.5dB

Tele-power supply: Automatic, 12Vdc/90mA

Power supply: 90~250Vac - 50/60Hz

Consumption: 2.5W

The set contents

1 x Jolly line 45980/5G-EU - Κεντρικός Ενισχυτής 5G 2 εισόδων

1 x Instruction Manual
