Marmitek Split 812 UHD - HDMI Splitter

Marmitek Split 812 UHD

HDMI splitter with auto scalling and 4K UHD support - 1 in/ 2 out

With the Marmitek Split 812 UHD you can connect one HDMI source (Blu-ray player, digital TV set-top box, game console, etc.) with two screens (HDTV, projector or even an AV amplifier). Unlike ordinary HDMI splitters, the Split 812 can simultaneously display two different video resolutions. This allows you to enjoy Ultra HD optimally, without having to replace all of your other equipment. Suitable for 4k2k Ultra HD, 1080p Full HD and all 3D formats.

Marmitek products are manufactured with the utmost precision and are of high quality.

Feautures of hdmi splitter

• Split and scale your HDMI signal to a 2nd (Ultra) HDTV or projector.
• Enables playing video and audio from your HDMI device (Digital TV Decoder, Blu-ray player or HDD recorder) simultaneously on 2 screens.
• Continue to use your non-Ultra HD-enabled equipment*, simply by using the unique automatic output scaling feature, which prevents it from switching back to a lower resolution.
• The Auto Scaling feature automatically detects the highest possible resolution of your display, and can simultaneously display two different video resolutions again (1080p and 4k2k).
• Suitable for 4k2k Ultra HD, 1080p Full HD and all 3D formats.
• Supports High Definition LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio.
• Repeater and equalizer function.
• Package dimensions 26x8x19 cm
• Package weight: 0.800 Kg

*Devices supporting a maximum resolution of Full HD 1080p (v1.3), such as an HDTV, Projector, AV Receiver, etc

How it works?

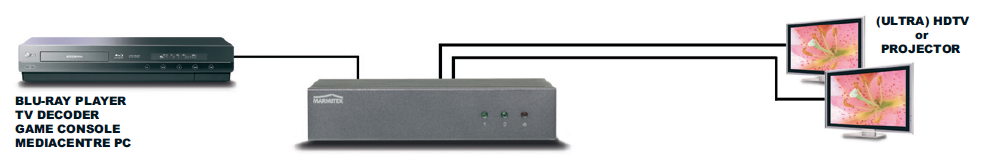

Connect the HDMI source to the Marmitek Split 812 UHD  ‘input’ via an HDMI cable. Connect the HDMI screens to the Marmitek Split 812 UHD ‘output’ via HDMI cables.. Finally, connect the power adapter to the Split 812 UHD and plug into the socket.

Features

Resolution

Supported Resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4k2k@23/24/30Hz

Supported 3D formats: 1080p@23.98/24Hz, 720p@59.94/60/50Hz

Maximum Pixel Frequency (max.): 300MHz

Single link Bit Rate (max.): 3 Gbps

Video Data Rate (max.): 9 Gbps

Output Video HDMI: HDCP1.0/1.1

Inputs and outputs

HDMI Input: (19-pin female) 1 HDMI

HDMI Output: (19-pin female) 2 HDMI

Maximal HDMI: cable length 15 metres

Power

External power adaptor Input: 100-240VAC @50-60Hz

Output: 5VDC @ 2A

The set contents

1x  HDMI Splitter

1x Power adaptor

1x HDMI cable

1x Usage instructions
