Marmitek Split 422 - HDMI Splitter

Marmitek Split 422

HDMI splitter with 3D support - 2 in/ 2 out

With the Marmitek Split 422 you can connect two HD screens (e.g. HDTV and HD projector) with two HDMI sources (Blu-ray Player, HD set-top box, PlayStation3, Xbox 360, etc.). In contrast to passive HDMI splitters, this is done without any signal or encryption loss and while retaining optimum image quality. It is also ideal for use in combination with an HDMI extender (e.g. to another room). Supports Full HD 1080p and 3D (so is suitable for use with your own 3D equipment).

Marmitek products are manufactured with great care and are of the highest quality.

Feautures of hdmi splitter

• Built in HDMI switcher makes it easy to switch between the 2 connected HDMI sources.

• Enables image and sound from your HD satellite receiver, set-top box, games console or Blu-ray Player to be simultaneously shown on 2 screens (HDTV or HD projector).
• Suitable for Full HD 1080p and all 3D formats.
• Means that it is not necessary to change HDMI cables if you wish to watch films or want to play games on another screen.
• With built-in repeater and equalizer for correcting any possible loss of signal, so you can connect up to 15 metres of HDMI cable to the output.
• HDMI ATC certified; fully compatible with all HDMI certified devices.

• Free of interference because of the solid metal casing.
• Package Dimensions 26x8x19 cm
• Package Weight: 0.850 Kg

How it works?

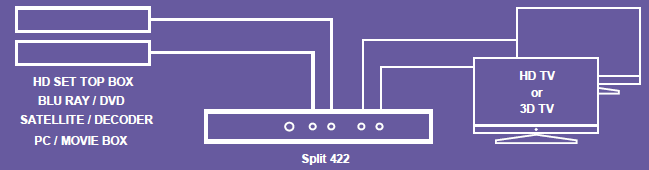

Connect the HDMI sources to the Marmitek Split 422 ‘inputs’ via an HDMI cable. Connect the HDMI screens (HDTV or HD projector) to the Marmitek Split 422 ‘outputs’ via HDMI cables.. Finally, connect the power adapter to the Split 422 and plug into the socket.

Features

Resolution

Supported HDTV Resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Supported 3D formats: 1080p@23.98/24Hz, 720p@59.94/60/50Hz

Supported PC Resolution: (max) 1920 x 1200

Maximal Pixel Frequency: (max) 225 MHz

Single link Bit Rate: (max) 2.25 Gbps

Video Data Rate: (max.) 6.75Gbps

Output Video HDMI: HDCP1.0/1.1

In- and outputs

HDMI Input: (19-pin female) 2 HDMI

HDMI Output: (19-pin female) 2 HDMI

Maximal HDMI: cable length 15 metres

Power

External power adaptor Input: 100-240VAC @50-60Hz

Output: 5VDC @ 2A

The set contents

1x  HDMI Splitter

1x Power adaptor

1x HDMI cable

1x Usage instructions
