Marmitek Split 612 UHD 2.0 - HDMI Splitter

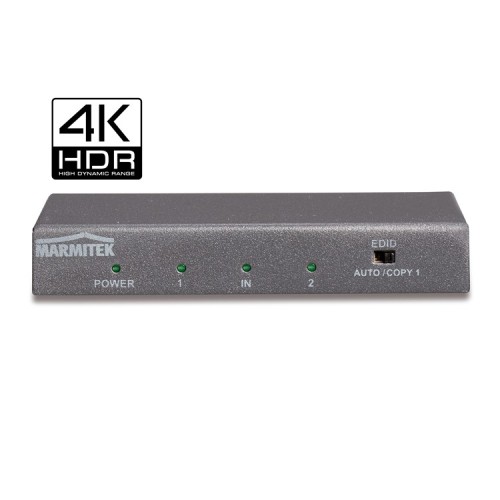

Marmitek Split 612 UHD 2.0

HDMI splitter with 3D | 4K60 (4:4:4) | HDCP 2.2 | - 1 in / 2 out

Marmitek Split 612 UHD 2.0 is an active HDMI splitter that you can connects 2 TVs or projectors with a single HDMI source. Unlike passive HDMI splitters, it can do this without any loss of signal or encryption, while maintaining optimal image quality. It's also ideal for use with HDMI Extenders, for example, to another room. The Marmitek Split 612 UHD 2.0 supports Ultra HD (4k), Full HD (1080p) and all 3D formats, making it suitable for all your existing and future equipment.

Marmitek products are manufactured with great care and are of the highest quality.

Feautures of hdmi splitter

• Ideal for presentations or distribution to another room.
• Enjoy the latest Ultra HD content and watch Netflix or a Blu-ray movie in 4K on 2 TVs or projectors, while maintaining ultimate contrast and beautiful colours.
• Eliminates the need to change HDMI cables if you want to watch films or play games on another screen.
• Suitable for the latest Ultra HD 4K60 resolution (3840 x 2160 / 60Hz), High Dynamic Range (HDR), Deep Color and 4:4:4 chroma colours.
• Supports Dolby Atmos and DTS:X and all other common audio formats.

• If required, set the HDMI output's maximum video resolution using the unique EDID switch.

• Supports HD Audio and all other common audio formats.
• No interference, due to solid metal, interference-free high-quality housing.
• With built-in repeater and equaliser to correct any signal loss.
• Supports HDCP 2.2 for playing protected 4K Ultra HD content.


How it works?

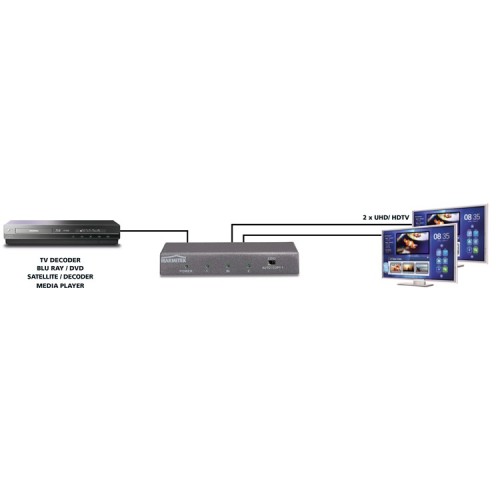

Connect the HDMI source to the Marmitek Split 612 UHD 2.0  ‘input’ via an HDMI cable. Connect the HDMI screens (HDTV or HD projector) to the Marmitek Split 612 UHD 2.0 ‘output’ via HDMI cables. Finally, connect the power adapter to the Split 612 UHD 2.0 and plug into the socket.

Features

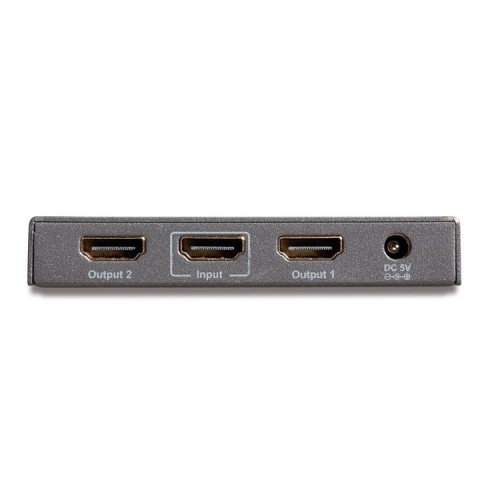

Connections

HDMI Input: (19-pin female) 1 HDMI

HDMI Output: (19-pin female) 2 HDMI

Maximal HDMI: cable length 15 metres

Video

Supported resolutions: 4K (4096x2160)@24/30/50/60Hz, 480i~1080p@50/60Hz,1080p@120Hz and 3D@1080p/60Hz

Supported PC resolutions: max. QSXGA (2560x2048@60Hz).

HDMI standards: HDMI 2.0b, HDR, EDID, DVI, all 3D formats and Deep Color 36-bit

HDCP standards: HDCP 2.2 and HDCP 1.4

Colour formats: RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2

Colour depth: max. 36-bit

Throughput speed: max.18 Gbit/s

Clock frequency: 600MHZ

Audio

HDMI audio formats: DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/ AC3, DTS 5.1 and PCM stereo

The set contents

1x  HDMI Splitter

1x HDMI cable

1x Power adaptor

1x Usage instructions
