Marmitek Split 418 UHD - HDMI Splitter

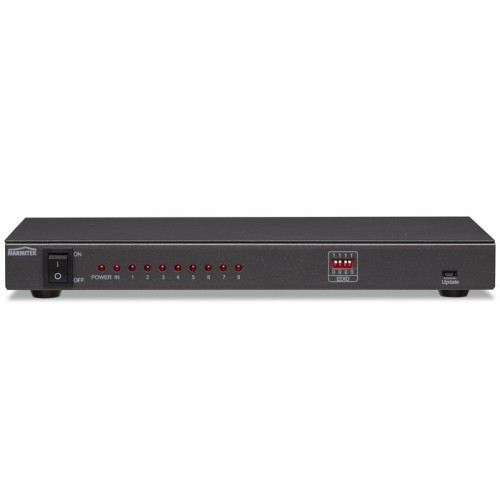

Marmitek Split 418 UHD

HDMI splitter with 4K UHD support - 1 in/ 8 out

With the Marmitek Split 418 UHD you can connect eight HD screens (TV and projector) with one HDMI source (Blu-ray Player, HD set-top box, PlayStation3, Xbox 360, etc.). Unlike passive HDMI splitters, it can do this without any loss of signal or encryption, while maintaining optimal image quality. It's also ideal for use with HDMI Extenders, for example, to another room. The Split 418 UHD supports Ultra HD (4k), Full HD (1080p) and all 3D formats, making it suitable for all your existing and future equipment.

Marmitek products are manufactured with great care and are of the highest quality.

Feautures of hdmi splitter

• Ideal for presentations or distribution to another room.

• Allows video and audio from your digital TV decoder, satellite receiver, game console or Blu-ray player to be simultaneously displayed on 2 screens (TV or projector).

• Eliminates the need to change HDMI cables if you want to watch films or play games on another screen.

• Suitable for Ultra HD 4K, Full HD 1080p and all 3D formats.

• Supports Dolby TrueHD, DTS-HD Master Audio and all other common audio formats.
• If required, select your video resolution (4k2k, 1080p, 1080i) and audio format (HD Audio, DTS 5.1, Dolby Digital, PCM 2.0) on the HDMI output, using the unique EDID switch.
• Interference-free, solid metal high-quality casing.

How it works?

Connect the HDMI source to the Marmitek Split 418 UHD  ‘input’ via an HDMI cable. Connect the HDMI screens (HDTV or HD projector) to the Marmitek Split 418 UHD ‘output’ via HDMI cables. Finally, connect the power adapter to the Split 418 UHD and plug into the socket.

Features

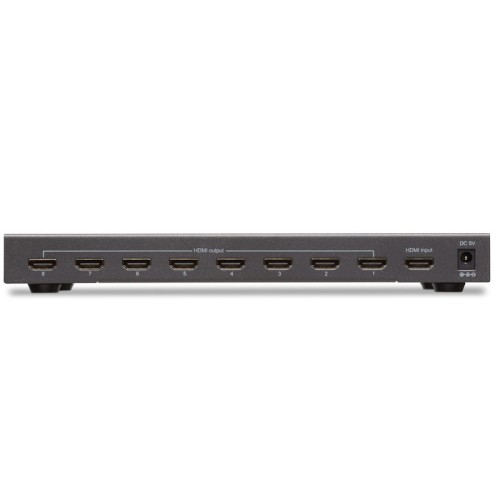

Connections

HDMI Input: (19-pin female) 1 HDMI

HDMI Output: (19-pin female) 8 HDMI

Maximal HDMI: cable length 15 metres

Video

Supported resolutions: 480p, 576p, 720p, 1080i, 1080p and 4k2k@24/30

HDMI standards: HDCP 1.4, CEC, EDID, DVI, all 3D formats, Deep Color (36-bit), x.v.Color

Video Bandwidth: 10.2Gbps

Clock frequency: 300MHZ

Audio

HDMI audio: DTS-HD Master Audio, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3 and 2.0CH

The set contents

1x  HDMI Splitter

1x Power adaptor

1x User Manual
