Marmitek TV Anywhere Wireless HD - HDMI AV transmission & USB extension function

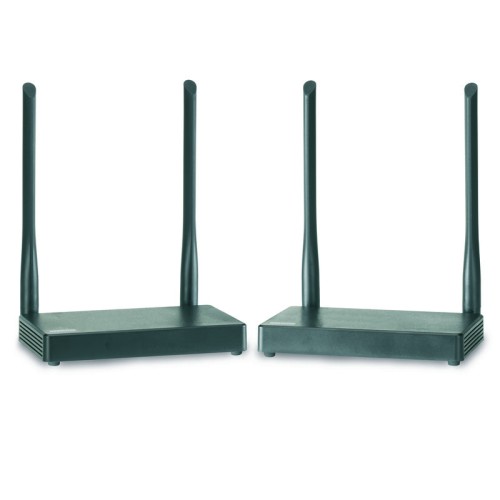

Marmitek TV Anywhere Wireless HD

HDMI AV transmission & USB Extension Function

With Marmitek TV Anywhere Wireless HD you can now watch TV or a film in your bedroom, study or any other room without laying any cabling. You can send the HD video signal from an HDMI source (for example, your TV decoder) wirelessly to a second TV or projector in another room, and continue to operate those remotely. You can connect a TV or projector to both the transmitter and the receiver, enabling you to watch the same content in two rooms. In addition to an infrared return feature, the TV Anywhere Wireless HD™ also features a built-in USB extension function. This helps you to continue to operate connected HDMI sources, such as a Media Center PC or laptop, from another room, using a mouse and/or keyboard.

Features of Full HD Transfer and USB extension

• Wireless HDMI signal transfer (up to 50m) through walls and ceilings without quality loss or noticeable lag.
• Supports video resolutions up to 1080p (Full HD).
• Watch your favourite TV programmes or films from your decoder, Media Center PC or Blu-ray player in HD quality on a 2nd TV/projector or on your smartphone/tablet (through a free app) anywhere in the home.
• Operate your AV equipment remotely using the infrared return feature.
• Connect your keyboard and mouse to the receiver to control your PC remotely.
• Loopthrough enables you to watch the same content at two locations simultaneously.
• Supports HDCP and is fully compatible with all HDMI versions.

How it works?

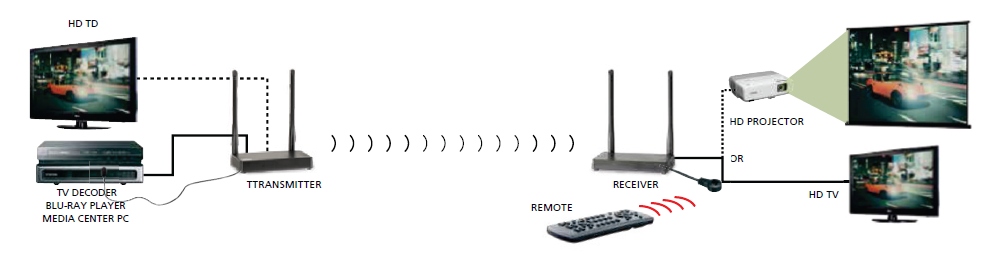

Figure 1: Transmit a signal of an A/V device to a second TV in another location in your home.

Figure 2: Operate connected HDMI sources, such as a Media Center PC or laptop, from another room, using a mouse and/or keyboard.

Features

Video

Supported resolution: 1080p@60/50Hz, 1080i, 720p, 576p, 480p

Supported PC resolutions: max. 1920 x 1080@60Hz

HDMI standards: HDMI, DVI, EDID and HDCP

Technology

Operational frequency: 2.4 GHz

Range: Up to 200 metres clear field and up to 50 metres through floors and walls

Latency: (lag) <100ms

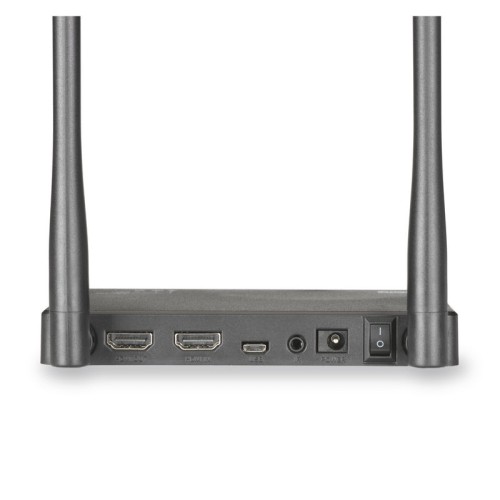

Transmitter

HDMI input: 1 x HDMI (19-pin female)

HDMI output: 1 x HDMI (19-pin female)

IR led connector: 1 x 3.5mm jack

USB connector: 1 x Micro-USB (PC, laptop)

Receiver

HDMI output: 1 x HDMI (19-pin female)

IR receiver connector: 1 x 3.5mm jack

USB connector: 2 x USB-A (mouse, keyboard)

Audio

Supported audio: 2CH PCM stereo

Infrared return function

Frequency range: 30 ~ 60kHz

Power

External power adapter: 100-240VAC @50-60Hz, 5VDC @ 2A

The set contents

1x HD transmitter

1x HD receiver

1x IR receiver cable

1 x IR led extender cable

2 x HDMI cable

1 x Micro USB cable

2 x Power adapter

1x User Manual
