Techly IDATA HDMI-WL50D - Compact Wireless HDMI Extender 50m

Techly IDATA HDMI-WL50D

Compact Wireless HDMI Extender 50m

The Techly IDATA HDMI-WL50D is a wireless HDMI Extender consisting of a transmitter and receiver that allows you to transmit and extend the HDMI signal up to 50 meters wirelessly. It operates using the 5 GHz frequency band to feature a strong interference capability and support point-to-point connectivity. The 20-60KHz infrared remote control allows the source device to be controlled on the receiver side. It is truly an excellent solution for meetings, conferences, education and home and multimedia entertainment. These wireless extenders can lose signal if transmitted through walls, glass or other obstructions. It is recommended that you install it in a barrier-free environment and reduce the barriers so that the wireless signal can maintain its stability.

Features of Extender Hdmi Transmission

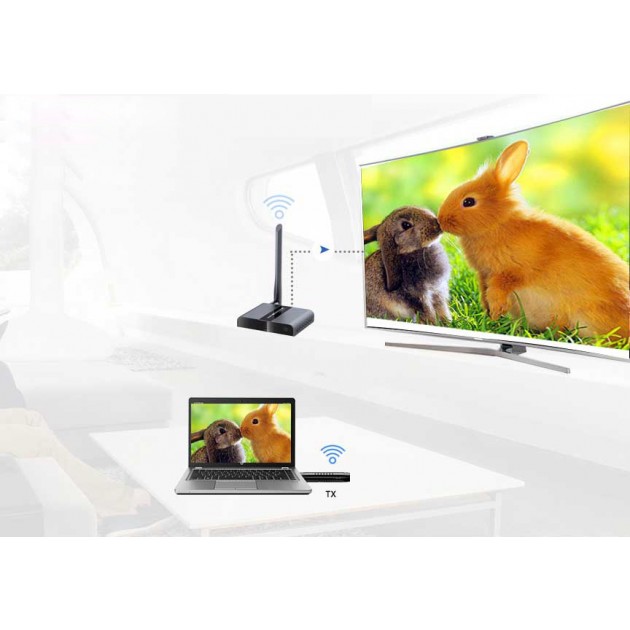

How it works?

Features

Generally

HDMI Compliance: HDMI1.3
HDCP Compliance: HDCP1.2
Supported resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
Supported audio formats: L / R stereo
Maximum transfer speed: 10.2 Gbps
TMDS signal display and output: 0.7 ~ 1.5Vp-p (TMDS)
DDC Signal Input and Output: 5Vp-p (TTL)
Input cable length: ≤5m (standard HDMI1.3 AWG26
cable)
Output cable length: ≤5m (HDMI1.3 AWG26 cable)

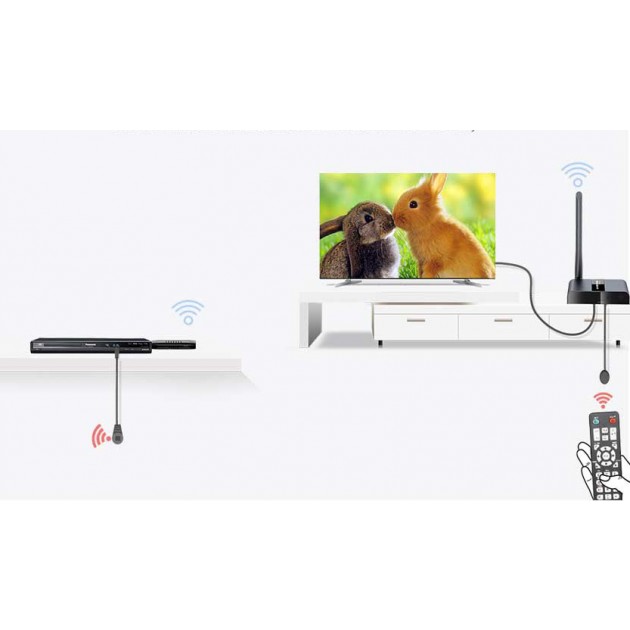

IR Remote Controller: Supports IR Passback with 20 ~ 60KHz frequency band
Wireless transmission: 5GHz

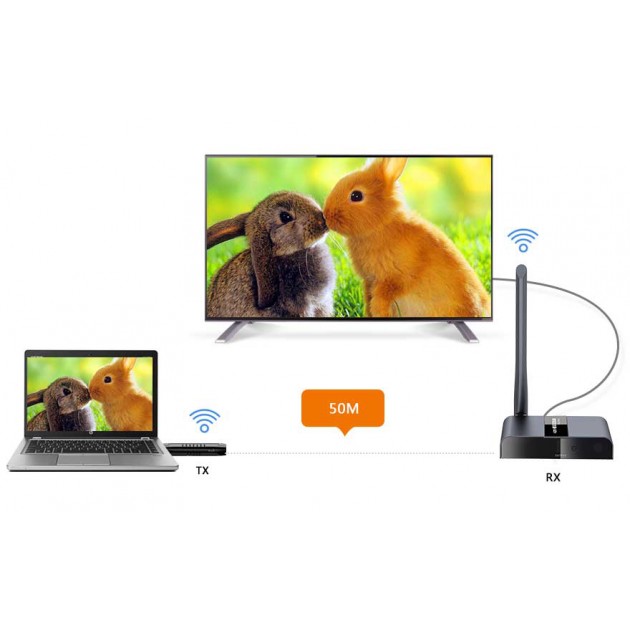

Transmission distance: supports up to 50 meters
Latency: ≤ 200 ms

Dimensions:

Dimensions TX: 88.90 (L) x 38.88 (P) x 15.17 (A) mm
Dimensions RX: 131.65 (L) x 95 (P) x 19.90 (A) mm
Black colour
Weight: TX: 30gr RX: 220gr

Operating conditions

Operating temperature: 0 ° C + 40 ° C
Storage temperature: -20 ° C + 70 ° C
Humidity (without condensation): 0 - 90%

Package Contents

1 X Wireless HDMI Transmitter
1 X Wireless HDMI Receiver
1 X DC 5V / 2A power supply
1 x IR Blaster Extension
1x IR expansion slot
1 X USB Cable
1 X Instruction Manual
