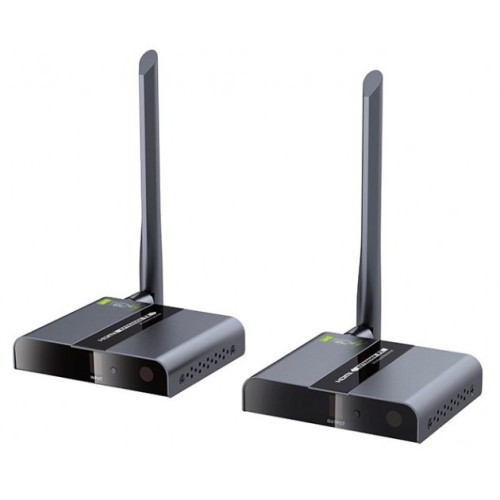

Techly IDATA HDMI-WL88M - Wireless HDMI Extender

Techly IDATA HDMI-WL88M

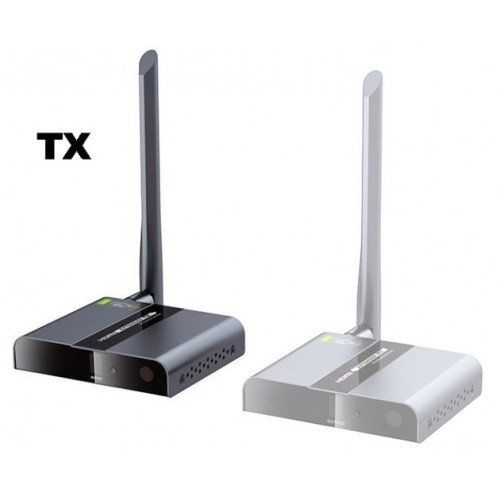

Wireless HDMI Extender 50m TX

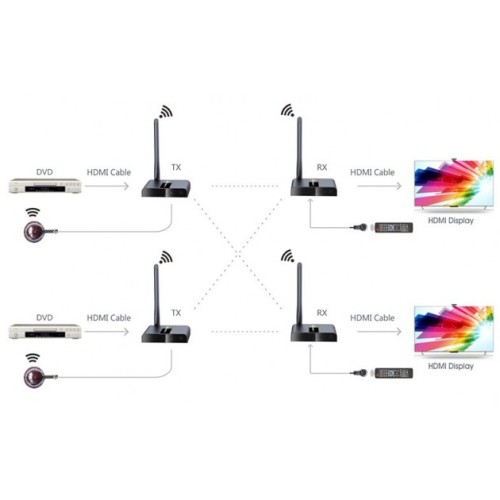

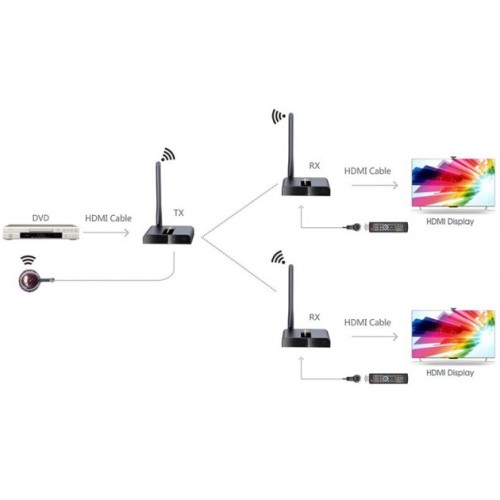

The Techly IDATA HDMI-WL88M Wireless HDMI extender allows you to transmit and extend the HDMI signal up to 50 meters wirelessly, with a powerful anti-interference capability with a 5 GHz operating frequency. It supports point-to-point delivery (1 Trasmitter and 1 Reicever not included), but also one to many (from 1 to 2) and multiple to many (2 to 2, 2 to 1) configurations. IDATA HDMI-WL88M supports a wide-band IR 20-60 KHz bandwidth to achieve radio remote control of source devices on the receiver side. With the two control buttons and the IR controller, it easily makes the channel setup. It is an excellent solution for transmitting one or more HDMI source signals on one or more simultaneous simultaneous wireless displays, ideal for conferences, home entertainment and education applications, etc.

Attention requires the receiver with a code: IDATA HDMI-WL88MR

Note:

The transmission distance of 50m is declared for open spaces

Walls or windows will shorten the range of the coverage signal or cause a large signal loss

It is recommended that the distance between each unit is greater than 5 meters Relay

Feautures of hdmi extender

How it works?

Features

General

Voltage / current DC5V / 2A

Power Consumption TX <7 W; RX <5W

 HDMI1.3 Compliance

HDCP1.2 Compliance

HDMI resolution supported: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz. 1080i @ 50/60 Hz; 1080p @ 50/60 Hz

Supports stereo L / R sound formats

Maximum transfer speed 10.2 Gbps

L / R Stereo Sound Signal Format

TMDS 0.5 ~ 1.5Vp-p (TMDS) signal input and output

DDC Signal Input and Output 5Vp-p (TTL)

Input cable length is supported ≤5 m (AWG26 HDMI1.3 cable)

Output cable length is supported ≤5m (AWG26 HDMI1.3 cable)

Supports an IR pass-back IR remote control with a frequency of 20-60 KHz

Wireless transmission method 5.8G

Transmission distance 50 meters

Delay ≤ 200 ms

Average Damage Time (MTBF)> 30000 hours

Certifications:

Certifications: CE

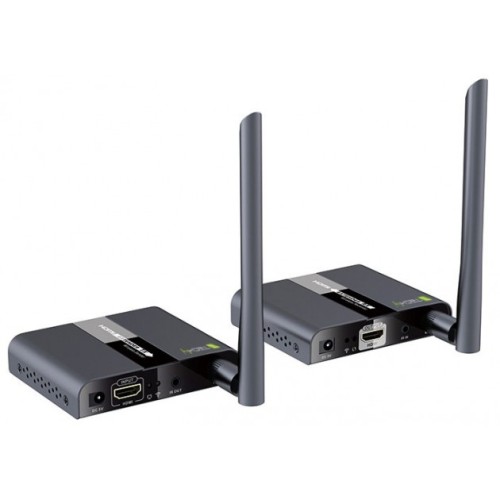

Connections Instructions

Connect the HDMI input to the HDMI source device and connect the IR blaster extension cable to the IR OUT of the transmitter (TX)

Connect the HDMI output to the HDMI monitor and connect the IR receiver extension cable to the IR IN (RX)

Turn on the device (indicator lights) and be ready for use

The set contents

1x Wireless transmitter

1x Infrared transmitter cable

1x 5V 2A power supplies

1x installation guide

1 x Remote Control
