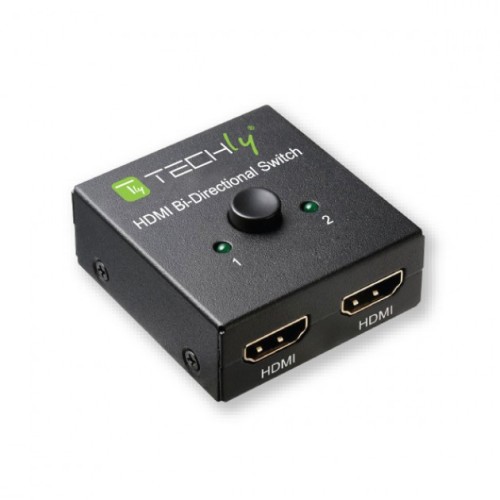

Techly IDATA HDMI-22BI2 - HDMI Switch 2 ports

• Techly IDATA HDMI-22BI2

HDMI Switch 2 ports 4K2K Bidirectional

Techly IDATA HDMI-22BI2 is a Bidirectional HDMI switch that allows you to plug two high definition sources into a single HDTV or projector, then switch between them using the push button on the unit. Or plug one high definition source in to two HDTV’s or projectors, then switch to show the image on either of the screens.

Feautures of HDMI Switch

• Supports 1080p 3D resolution and Ultra HD up to 4K2K @ 60Hz.
• Compliance with HDMI 2.0, HDCP2.2, ARC, CEC.
• It supports high resolution up to 3840x2160 / 60HZ, YUV 4: 4: 4
• Supports video format: 8/10/12 bit deep color
• It supports 7.1 digital audio signals, LPCM channel, Dolby TrueHD and DTS-HD Master Audio.
• Baud Maximum Speed: 6Gps
• Maximum bandwidth: 600 Mhz
• Maximum supported entrance distance: 10 m (with AWG 24)
• Maximum output supported distance: 10 m (with AWG 24)
• No power required.
• Manual selection key for switching between functions.
• Dual LED for status display.

How it works?

Example of 2 Inputs to 1 Output

Example of 1 Input to 2 Outputs

Features

General

Maximum video resolution: 3840x2160 / 60HZ, YUV 4: 4: 4

HDMI: 2.0

HDCP: Yes, 2.2

Button for manual selection of both modes

Dual Status Indicator Lights

Dimensions: 48x52x20 mm

Input

Connector A Type: HDMI

Format A connector: female

Output

Connector B Type: HDMI

Format B connector: female

Supply

Power supply: Not required

The set contents

1x HDMI Switch

1x User Manual
