Techly IDATA HDMI-CAPCA01 - Capture live streaming video from HDMI to HDD / PC

Techly IDATA HDMI-CAPCA01

Capture live streaming video from HDMI to HDD / PC

Techly IDATA HDMI-CAPCA01 is a standalone 1080p video capture device for recording HD video or gameplay from any HDMI video source, including Xbox / PlayStation / Nintendo game consoles, players, cameras, etc. on the USB flash drive and mobile hard drive with the push of a button. While maintaining all HD capture functions, with a PC side port specially designed on the video capture box and the bundled software HDML-Cloner Pro Helper, network videos can be recorded directly on the PC without capacity limitations. The scheduled recording function in HDML-Cloner Pro Helper allows you to record videos automatically even when you are away from home.

Feautures of IDATA HDMI-CAPCA01

• PC is not required. Capture any HD video or gameplay on the USB flash drive or mobile hard drive
• Record and save a video continuously in a single file, not separate (formatting in NTFS is necessary), so it will no longer be necessary to combine them with the video editing software!
• Easy to use, just press a button to record

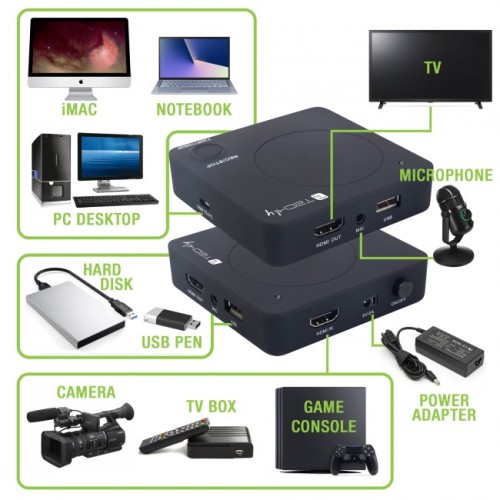

• Supports any HDMI video device including HD media player, ST box, FPV drone, DSLR camera, PS4, PS3, Xbox 360, Xbox One, Nintendo Switch, Nintendo NES, Wii U, etc.
• PC port: record video or gameplay from any HDMI video source on your PC with the bundled software HDML-Cloner Pro Helper and you can pause it at any time while recording with a single click
• Schedule Recording - Automatically pre-select and record your favorite live video when away from home
• VBS: scan the QR code and synchronize the videos recorded on the PC on your mobile phone or tablet for playback via LAN
• Network live video: works with third party software such as OBS, XSplit to transmit HD video and gameplay
• Microphone input for recording live or voice-over comments
• Free MP4 video editing software - MP4-Cloner. Cut, combine, convert and burn your recorded videos!
• Free update of firmware and software.

Features

Technical specifications

• Acquisition format: MP4 (H.264)
• Video standard (input) NTSC, PAL
• Supported disk formats FAT32, NTFS
• HDMI input, Microphone
• HDMI output (pass-through), USB Host, micro USB
• Max Bitrate: 10 Mbps
• Power supply DC 5V, 2A
• Note: the capture device records several 2 GB files if the mass storage is formatted in FAT32. For single file registration the partition must be in NTFS
• Maximum 2TB storage capacity

Supported resolutions

• Input: 1920x1080 (50p), 1920x1080 (60p), 1920x1080 (24p), 1920x1080 (25p), 1920x1080 (30p), 1920x1080 (50i), 1920x1080 (60i), 1280x1024 (60p), 1280x720 (60p), 1280x768 (60p), 1280x800 (60p),
• Output: 720x480 (60i), 720x480 (50i), 640x480 (60p), 720x480 (60p), 720x576 (50p)
• Recording: 1920x1080 (30p), 1280x720 (30p), 1280x720 (60p), 640x480 (60p), 720x480 (60p), 720x576 (50p)

Dimensions

• Width: 8.63 cm
• Depth: 8.63 cm
• Height: 2 cm

The set contents

1 x Techly IDATA HDMI-CAPCA01

1 x HDMI cable

1 x Power supply

1 x Micro USB to USB cable

1x User Manual
