Manhattan IDATA HDMI-41MVMH - Multiviewer HDMI

Click Image for Gallery

Manhattan IDATA HDMI-41MVMH

4-Port switch Multiviewer HDMI

The Manhattan IDATA HDMI-41MVMH MULTIVIEWER enables you to connect up to four HDMI sources - such as game consoles, Blu-ray players, satellite decoders, digital receivers, set-top boxes - to one screen. Ideal for a variety of home or commercial applications, the HDMI Multiviewer features manual switches and a convenient IR remote control so you can quickly select or change HDMI sources.

Feautures of HDMI Multiviewer

Share up to four HDMI audio / video sources on one screen simultaneously or one at a time
The multiviewer function supports four customizable modes: full screen and three variants of Combo Mode with continuous switching between sources
Supports 1080p resolution, HD 3D video and Deep Color (36-bit / pixel)
Integrated video band amplifier
Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
Supports Stereo, Coaxial and Toslink audio output for connection to an amplifier or receiver for optimum sound quality

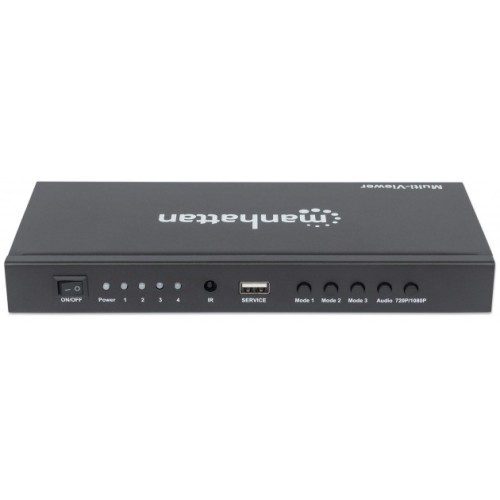

Switching between sources by remote control or manually using a button on the device
Flexible audio / video solution for conference rooms (to share ideas and data), digital signage (space and cost reduction for multiple screens), security and other applications
Works with game consoles like PlayStation and Xbox, Blu-ray players , digital terrestrial receivers and satellite receivers and much more
Full HDCP compatible
AC powered with Plug and Play installation, does not require special configurations
Plug-and-play installation
Gold-plated contacts for long life time

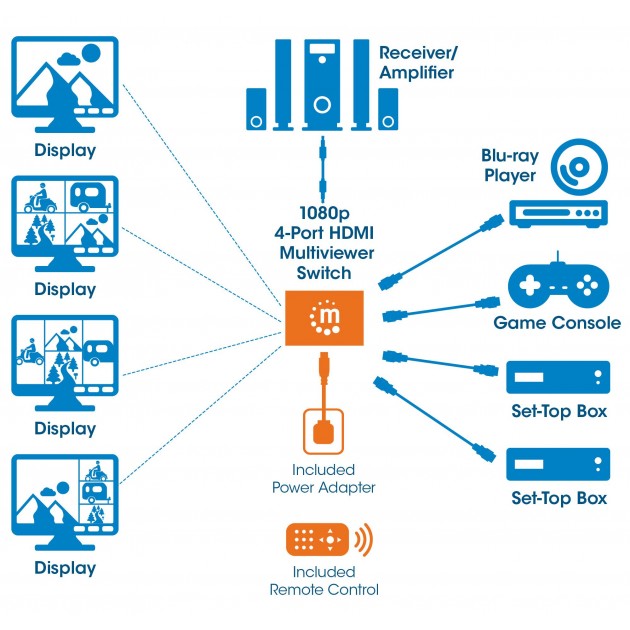

How it works?

Features

General

Distance source-switch: up to 15 m

Switch-screen distance: up to 15 m

Uninterrupted switching is supported when the source resolutions are the same (when the sources have different resolutions, a three second delay occurs)

Power supply: 12 VDC @ 2 A; AC power adapter, 0.9 m

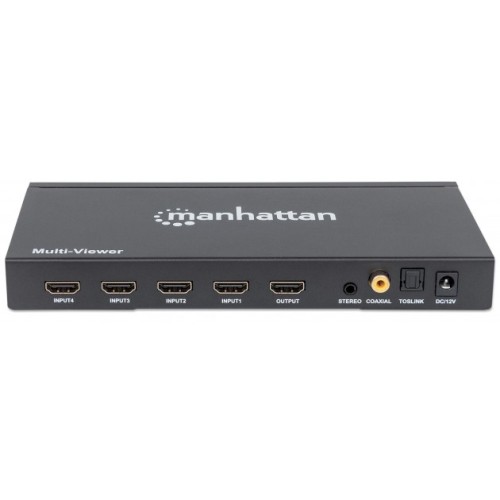

Connections

A female HDMI connection, 19-pin (output)

Four HDMI female connections, 19-pin (input)

A female stereo audio connection, 3.5 mm (output)

A female coaxial connection, S / PDIF (output)

A female Toslink connection (output)

A USB connection, Mini-B (input) for factory use only

A 12 VDC female power connection, OD 5.5 mm / ID 2.1 mm (input) Input

Signal Input/Output

Incoming video signal: 400 - 600 mV

Incoming DDC signal: 5V pp (TTL)

Maximum single-link range: 2.25 Gbps and 1080p resolution

Video output: HDMI 1.3, HDCP 1.4a

Frequency: 2.25 Gbps / 225 MHz

Video Resolutions

DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p

Standards and Certifications

HDMI 1.3, HDCP 1.4a, CE, FCC, RoHS2

Physical Information

Dimensions: 213 x 100 x 25 mm

Weight: 0.46 kg

Housing: metal

Power

Power and connection LED indicators

Power supply: 12 VDC / 2 A, 0.9 m

Switch

The set contents

1x Manhattan IDATA HDMI-41MVMH

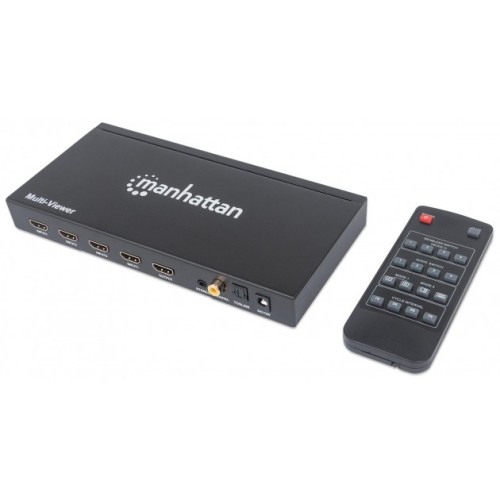

1x IR Remote Control (battery included)

1 x Power supply

1x User Manual
