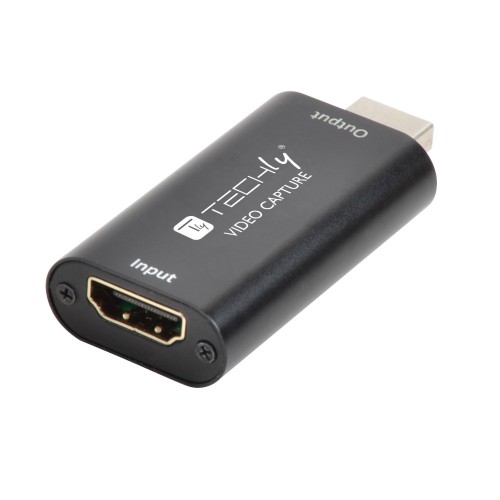

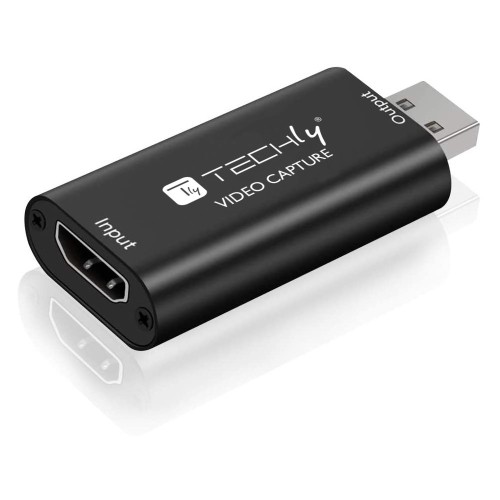

Techly I-USB-VIDEO-1080TY - Video Grabber HDMI

Techly I-USB-VIDEO-1080TY

Video Grabber HDMI

The Techly I-USB-VIDEO-1080TY is a video capture card capable of simultaneously capturing HDMI audio and video and transmitting them to a computer or smartphone, via USB port, for preview and archiving. It is suitable for high definition live video capture and online recording. It supports maximum input resolution of 4K 60Hz and maximum output resolution of 1920 × 1080 @ 60Hz. Thanks to its compact size it is very convenient to take with you everywhere.

Feautures of I-USB-VIDEO-1080TY

• HDMI video capture card
• HDMI female input, USB A male output
• Maximum input resolution of 4K 60Hz: 1080p output
• Support Deep Color 8/10 / 12bit
• It supports Windows and Android
• Compact and portable
• Dimensions: 64 x 28 x 13 mm
• Black colour

Features

General specifications

• It supports maximum input resolution of 3840 × 2160 @ 60Hz
• It supports maximum output resolution of 1920x1080 @ 60Hz
• Supports standard AWG26 HDMI cables: maximum length 15 meters, (1080P resolution and below)
• It supports most of the capture software, such as VLC, OBS, Amcap, etc.
• Compliant with USB Video and UVC standard
• Compliant with USB Audio UAC standard
• It does not require an external power supply

Technical specifications

• HDMI resolution Maximum supported input 3840 × 2160 @ 60Hz
• Supported video format Deep Color 8/10/12 bit
• Video output format YUV, JPEG
• Video Output Resolution: The maximum output can be 1920 × 1080 @ 60Hz
• Supported audio format L-PCM
• Input cable length ≤15m, Standard HDMI cable AWG26
• Maximum working current 0.4A / 5VDC
• Operating temperature -10 to + 55 ° C)

Connections

• Input: HDMI female
• Output: USB A male

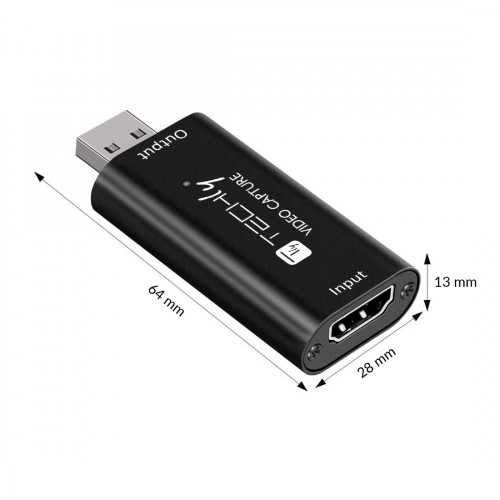

Dimensions

• Length: 64 mm
• Depth: 28 mm
• Height: 13 mm
• Weight: 21.4 g

Certifications

• THERE IS
• WEEE

The set contents

1 x Techly I-USB-VIDEO-1080TY - Video Grabber HDMI

1 x User Manual
