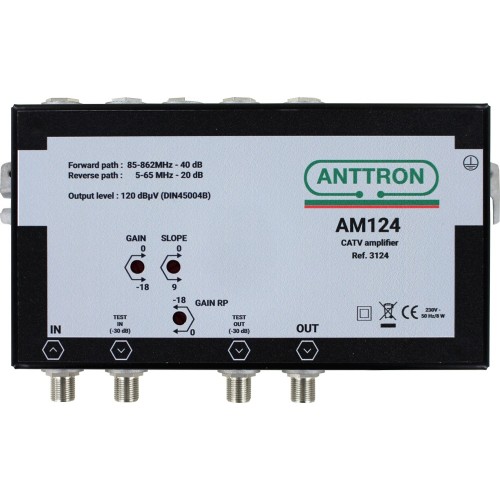

Anttron AM124 - Wideband CATV Amplifier

Anttron AM124

Wideband CATV Amplifier

Anttron A124 wideband CATV amplifier is specifically designed for use to CATV applications for the reception of digital and analogue channels. With aluminium chassis die cast and designed using the latest evolution of transistor (GaAs-MMIC), it results in small dimensions, low power consumption, and features with high linearity and efficiency. The amplifier has a gain adjustment forwrd path, a slope adjustment and a gain adjustement return path. Also, it maintaining low power consumption.

Technical specifications

Number of inputs: 1

Number of outputs: 1

Test input / output: yes : -30 dB

Forward gain (85-862 MHz) dB: 40

Return path gain (5-65 MHz) dB: 10

Attenuation range (forward  / return path) (dB): 0-18

Slope attenuation range (forward path) (dB): 0-15

Noise figure (dB): < 7

Input/ouput return loss (dB): > 10

Max. output level (IM3 : -52 dB : 3 equal carriers) (dBµV): 118

Voltage: 230 Vac (-10%,+15%)

Power consumption (W): 6

The set contents

1x Anttron AM124 - Wideband CATV Amplifier

1x Allen key

1x Instruction Manual
