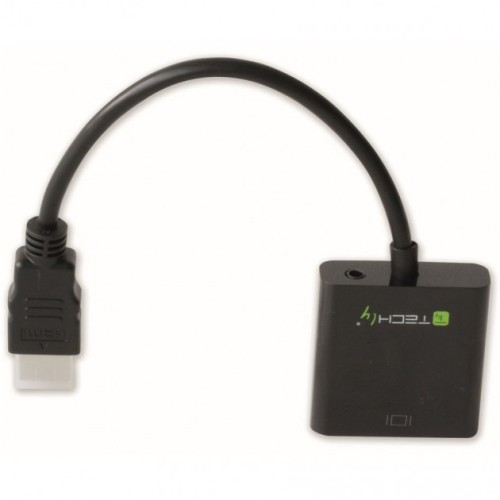

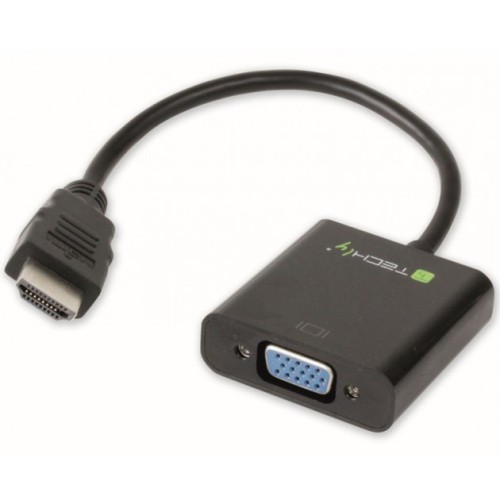

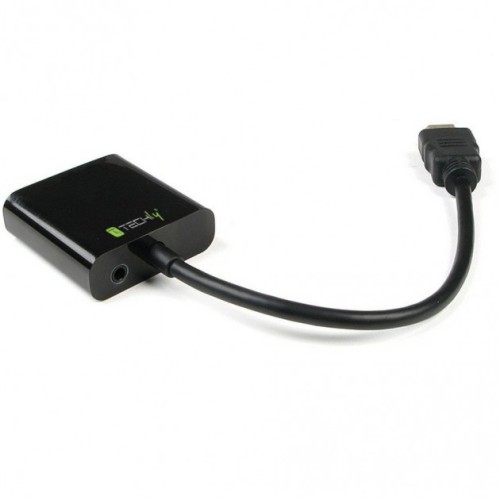

Techly IDATA HDMI-VGA2A - HDMI to VGA with Audio Converter

Techly IDATA HDMI-VGA2A

HDMI to VGA with Audio Converter

Techly IDATA HDMI-VGA2A is an adapter that converts digital HDMI signal into analog VGA video. When watching a movie or playing on the traditional VGA monitors or projectors, this converter allows you not only to enjoy their high definition image, but also make you enjoy high quality sound.

Feautures of converter

• HDMI receiver compatible with HDMI 1.4 specification.
• Supported resolution up to WUXGA 1920x1200 @ 60Hz and 1920x1080 @ 60Hz.
• Analog output RGB to VGA triple 9-bit DAC up to 200MHz pixel.
• Synchronization signals can be supplied separately or composite.
• Audio encoder which supports 2-channel IIS / S / PDIF audio output.

• VGA output is compatible with VESA VSIS V1R2.
• MCU integrated to manage the control logic.
• Support device winding firmware from flash memory Boot ROM.
• Buffer Integrated EDID.
• Auto Power saving and low power consumption in stand-by.
• Support YCC to RGB conversion in ITU-R BT.601 color space and 709.
• Plug & Play: installs in seconds, without any changes required.
• Converts digital HDMI signal into analog VGA video.
• Supports HDCP 1.0 / 1.1 / 1.2.
• Cable length: 15 cm.
• Compact design.

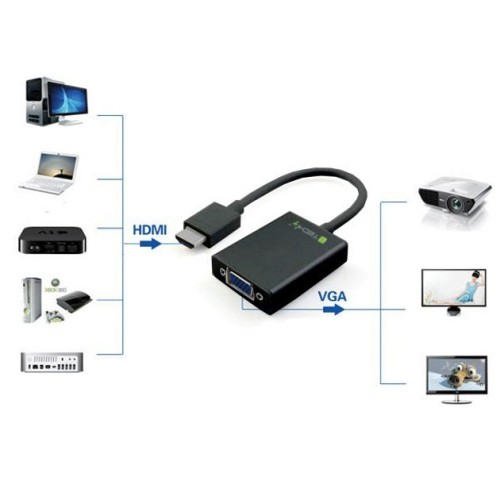

How it works?

Features

Certifications

CE , FCC , RoHS, WEEE

Connections

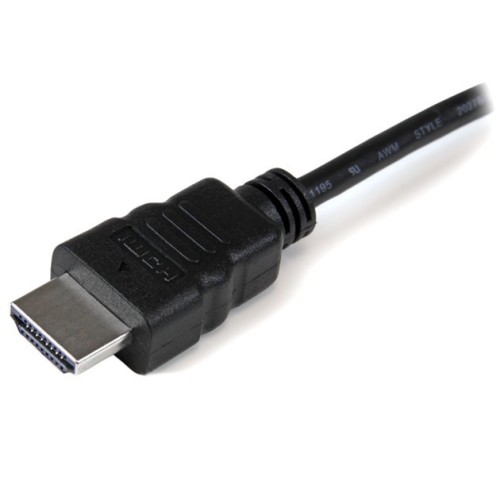

Input: HDMI A Male (19pin)

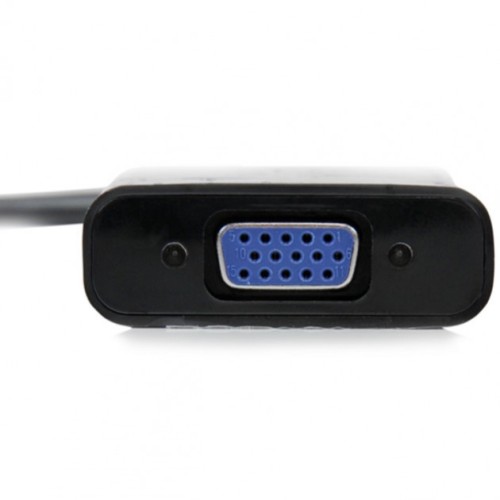

Output: VGA Female

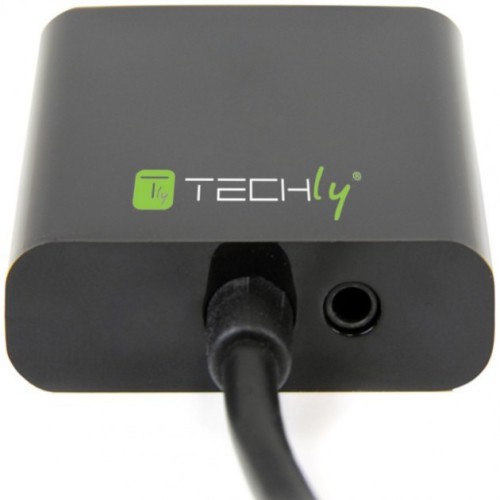

Audio port 3.5 "female

HDMI input: 480I / 576I / 480P / 576P / 720P / 1080I / 1080P / 1200

VGA output: 480I / 576I / 480P / 576P / 720P / 1080I / 1080P / 1200

Applications

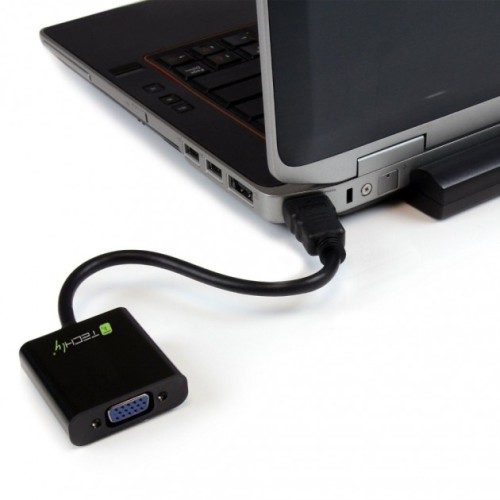

Notebook / Ultrabook

Tablet

PDA / handheld devices

Digital video systems

Input

Connector A Type: HDMI

Format A connector: female

Number A Connector; 1

Output

Connector B Type: VGA + Audio 3.5mm

Format B connector: female

Number B Connector: 1

Supply

Power supply: Required (included)

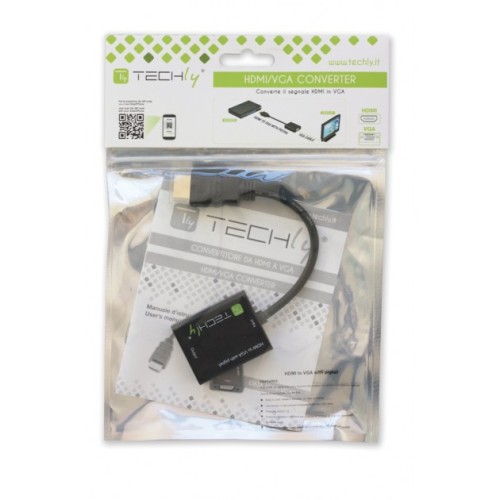

The set contents

1x HDMI converter cable IDATA-VGA2A

1x Audio Cable 1m

1x Instruction Manual
