Techly ICOC HDMI-DP12A60 - HDMI to Displayport Adapter

Techly ICOC HDMI-DP12A60

HDMI to Displayport Adapter

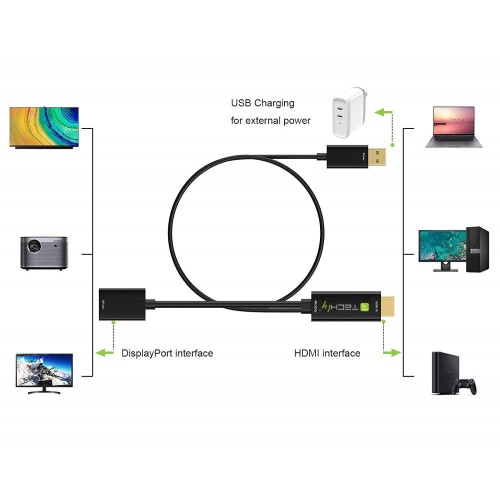

HDMI ™ to DisplayPort adapter that allows you to transmit the signal from an HDMI ™ source (DVI, tablet, PC, etc.) to a DisplayPort monitor. Uses a USB port for power, thus avoiding the need for an additional power supply. It has a compact design and is very convenient to take with you anywhere. The HDMI ™ to DP Converter allows you to add a second monitor to your laptop, allowing you to view documents, spreadsheets or web pages on multiple screens. Thanks to the 4K video resolution, it gives pleasant clear and realistic images.

Feautures of adapter

• HDMI ™ to Displayport Adapter;

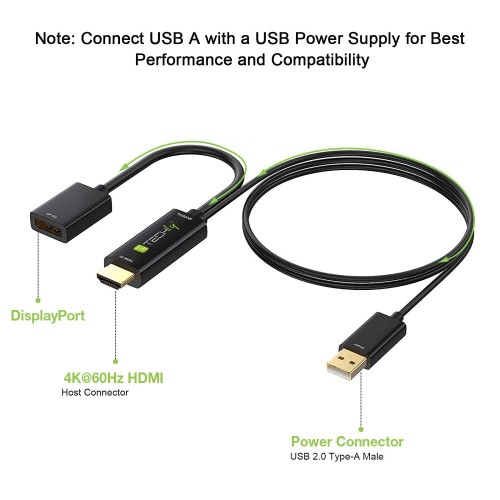

• Connectors: 1 HDMI ™ male input; 1 DisplayPort Female output; additional USB-A male port (for power supply)
• HDMI ™ support: link speeds up to 5.4 Gbps (HBR2); color depth up to 12 bits
• Compliant with DP 1.2a and earlier versions; link speeds of 1.62 Gbps (RBR), 2.7 Gbps (HBR) or 5.4 Gbps (HBR2); maximum resolution up to 4KX2K at 60Hz for 4: 4: 4 format
• Supports HDMI resolution up to 4Kx2K @ 60Hz for 4: 4: 4 format; HDCP 1.4 / 2.2 compliance
• Converter Adapter Color: Black

Features

HDMI

Supports 8/10/12 bit deep color

Support HDCP1.4 / 2.2

Support HDR

Support SCDC

Supports resolution up to 4Kx2K @ 60Hz for 4: 4: 4 format

DisplayPort

Complies with DP 1.2a

Supports resolution up to 4Kx2K at 60Hz

Supports data rates of 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2)

Supports resolution up to 4Kx2K @ 60Hz for 4: 4: 4 format

Supports Deep Color 8/10/12 bit

Hot-plug detection support

USB-A

Connect this port to the source with the USB-A female port or USB power supply to supply power to the converter in case the HDMI source cannot provide enough power.

*Note: When the HDMI source supplies power below 300mA, please connect the external power supply to the USB-A female port to ensure normal operation.

Technical specifications

Male HDMI input

DisplayPort female output

Supports HDMI resolution up to 4Kx2K @ 60Hz for 4: 4: 4 format

Supports DisplayPort support resolution up to 4Kx2K @ 60Hz for 4: 4: 4 aspect ratio

Complies with DP 1.2a

Environmental characteristics

Operating temperature 0 ° C ~ 45 ° C

Operating humidity 10% ~ 85% RH (non-condensing)

Storage temperature -10 ° C ~ 80 ° C

Storage humidity 5% ~ 90% RH (non-condensing)

Certifications

THERE IS

The set contents

1x Techly ICOC HDMI-DP12A60 - HDMI to Displayport Adapter

1x User Manual
