Techly ICOC DSP-VH1220 - DisplayPort 1.2 to HDMI/VGA 4K Adapter

Techly ICOC DSP-VH1220

DisplayPort 1.2 to HDMI/VGA 4K Adapter

Techly ICOC DSP-VH1220 is a DisplayPort to HDMI and VGA Adapter. It allows you to transmit signals from a DisplayPort display to a high definition HDMI or VGA display (TV sets, projectors, etc). With this product, you can watch videos or slideshows together on the big screen. If both of the outputs are connected, then only one output can receive the input signal, HDMI output is prior to VGA output.

Feautures of adapter

• Adapter from DisplayPort Male to HDMI and VGA Female.
• Compliant with DisplayPort 1.2 specification.
• Supports HDMI resolution up to 4kx2k@60HZ.
• Supports VGA resolution up to 1920x1200@60HZ.
• Support 3D format and compliant with lower versions.
• Supports HDCP and EDID pass-through from PC source to display.

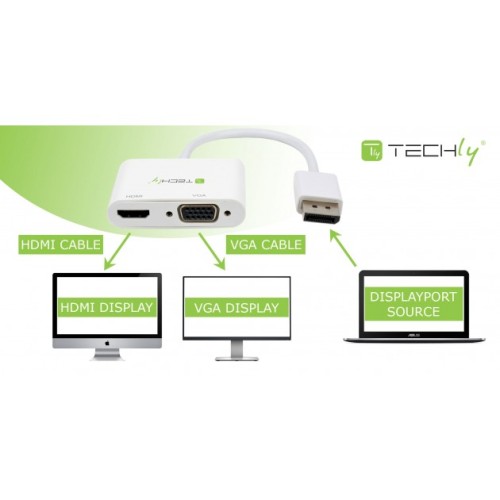

How it works?

Features

Certifications

Certifications: CE, RoHS

Specifications

Input connector: DisplayPort Male x1

Output connector: HDMI Female (HDMI V1.4) x1

Output connector: VGA Female (Max VGA 1920x1200) x1

HDMI resolution: up to 4KX2K@60HZ

VGA resolution: up to 1920X1200 @60HZ

Technical specifications

Connector Type A: 20-pin DisplayPort

Connector A format: Male

Connector Type B: HDMI / VGA

Connector B format: Female

Supply

 DP Cable provide power for product

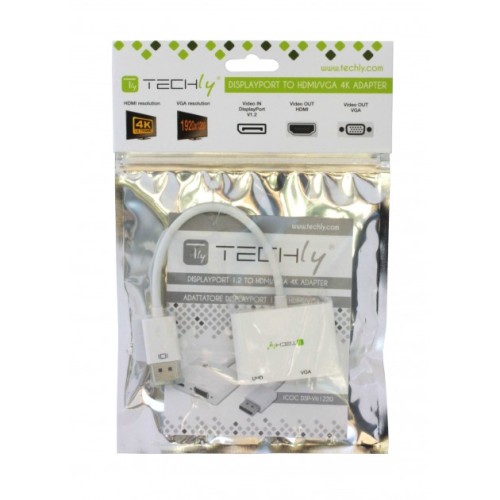

The set contents

1x Adapter from DisplayPort Male to HDMI and VGA Female

1x Instruction Manual
