Johansson KIT 7329/2436 - Mast Amplifier (LTE/5G)

Johansson KIT 7329/2436 - Mast Amplifier (LTE/5G) Amplifiers Onetrade

Johansson KIT 7329/2436

Mast Amplifier (LTE/5G)


Johansson KIT 7329/2436 is a Mast amplifier with 1 input in a protective box for insulating the amplifier and protection from moisture, and a 24 V power supply with 2 outputs. With Power LED indicator and LTE (5G) rejection.




Features


7329 Amplifier:


1 input / 1 output

LTE (5G) rejection

Gain (dB): 32

LED power indicator

Frequency Range (MHz): 470-694 (Ch. 21-48)

Noise figure (dB): 2.5

Maximum input level (dBmV): 82

Maximum output level (dBmV): 108

Power Supply (VDC): 24

Consumption (mA): 65



2434 Power supply:


Outputs: 2

Insertion loss (dB): 4-5

Isolation between outputs (dB): 10

AC input voltage / Frequency / Power: 230 V ~ / 50 Hz / 4.6 W

DC output voltage (VDC): 24

Output current (mA): 150

Short-circuit protection

Power LED indicator

wall or DIN-rail mountable

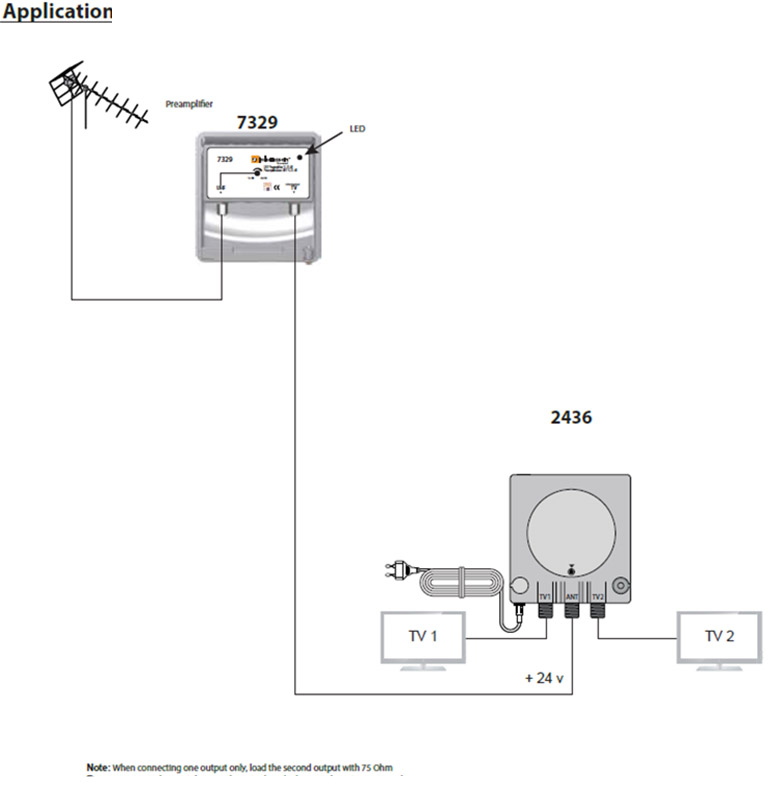

How it works?






The set contents


1x Johansson KIT 7329/2436 - Mast Amplifier (LTE/5G)

1x Manual
