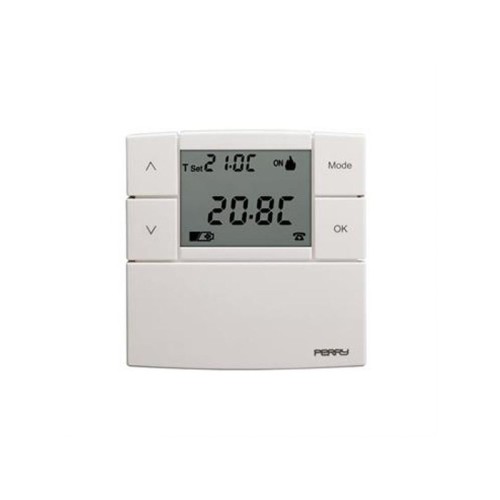

Digital Thermostat 1TP TE530B

Digital Thermostat

1TP TE530B

The Digital Thermostat 1TP TE530B is a thermostat with a schedule, with heating-cooling option and with digital room temperature display. It also works with underfloor heating thanks to the micro-adjustments of the temperature.

Advantages TP TE530B

• On / off operation
• Antifreeze function
• With control of periods from 7 to 20 min
• Transfer order
• The thermostat allows adjustment from + 5 ° C to 37.7 ° C

Description of keys and screen indications

Technical specification

Supply voltage: model with 2x1,5v batteries Alkaline batteries type AAA (LR03)

                            model with mains supply 230V 50 ÷ 60Hz

Autonomy of models with batteries: about 2 years

Disconnection power type and device: 1 / B / Electronic

Output type: relay with switch contact NO / COM / NC without potential max 5 (3) A / 250V

Network power connection: 2 wires (only on models with 230V power supply)

Load contacts: 2 or 3 conductors

Cross section of cables and terminals: 1.5 mm² ÷ 2.5 mm²

Temperature levels: COMFORT / REDUCTION (save) + COLLAPSE (off)

Ambient temperature display range: 0 ° C ÷ +37.7 ° C / +32 ° F ÷ +99.9 ° F

Ambient temperature analysis: 0.1 ° C / 0.1 ° F

Temperature range T Set: +5 ° C ÷ +37.7 ° C / +41.0 ° F ÷ +99.9 ° F (limited)

Setting temperature analysis: 0.1 ° C / 0.1 ° F

Adjustable deactivation of frost temperature: +4 ° C ÷ + 12 ° C / 39.2 ° F ÷ 53.6 ° F

Temperature reading deviation: ± 0.5 ° C / ± 0.9 ° F

Temperature adjustment type:

ON / OFF with differential: adjustable from 0.2 ° C to 1.2 ° C / from 0.3 ° F to 2.1 ° F (default 0.5 ° C / 0.9 ° F)

Proportional with control period: adjustable from 7 to 20 minutes (default 10 minutes)

Temperature change: 1 ° K / 15 minutes

Degree of protection: IP 30

Insulation class: II

Degree of pollution: normal

Device operating temperature: 0 ° C ÷ +50 ° C / +32 ° F ÷ +122 ° F

Device storage temperature: -10 ° C ÷ +65 ° C / +14 ° F ÷ +149 ° F

CE Marking Reference Regulations: LVD - EMC EN60730-2-7 EN60730-2-9

Package Contents

1x Digital Thermostat 1TP TE530B

1x Manual instructions
