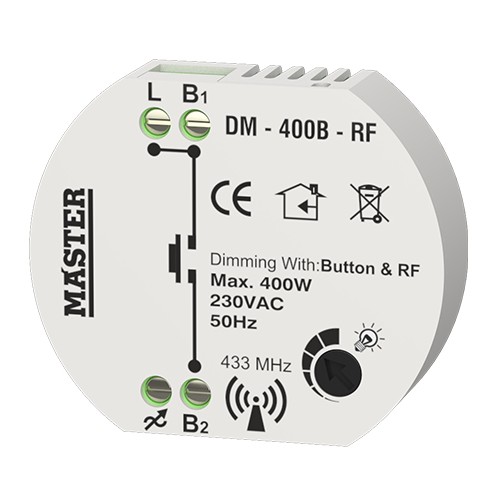

Master - DM-400b-RF Dimmer Button remote control

Master - Dimmer

 Button remote control dm-400b-RF

Dimmer DM-400B-RF (Lighting Controller) is an innovative product of digital technology Leading Edge & Trailing Edge, specially created to fully cover the needs for regulation of lighting intensity and for energy saving, using alternative type of lamps such as LED (dimmable LED), economy lamps (dimmable CFL ) and previous generation light bulbs (Resistive - Halogen).It is a totally safe, reliable, and aesthetically shaped product made of special integrated circuits of cutting-edge technology and of resistant plastic parts for difficult conditions of operation and usage. The remote control is sold separetely.

Product characteristics

• Dimmer: IGBT- Digital
• Function : Soft Start
• Operating Voltage: 180=230 VAC
• Power Line Frequency: 50Hz
• Output Power: 400 Watt
• Control Load:
• LED Lamps (Dimmable)
• CL Lamps (Dimmable)
• Halogen Lamps
• Resistive Magnetic Trafnsformers
• Electronic transformers
• Electric single-phase motors:
•     Universal
•     Asynchronous with torque strongly depended from motor speed(centrifugal pumps, fans, ventilations etc.)
• Enviroment working temperature : -20C until +50C
• Fuse : Electronic protection against short-circuit, overheating and overvoltage
• Wire size: From 0.5mm to 3.5mm
• Mounting : Electrical switch box

Advantages

• Specially designed for LED
• Unlimited number of lamps (Dimmable Led) up to 400W
• Mode selection (Leading Edge - Trailing Edge) depending on the connected load
• Soft-Start function for lamp protection
• Possibility to adjust the lower brightness limit of the lamps
• Electronic protection against short circuit, overheating and overvoltage with automatic return to operating mode

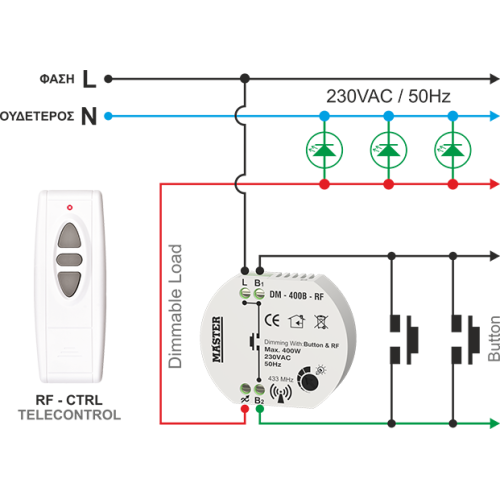

• Button operation from one or more points (on-off and brightness adjustment)

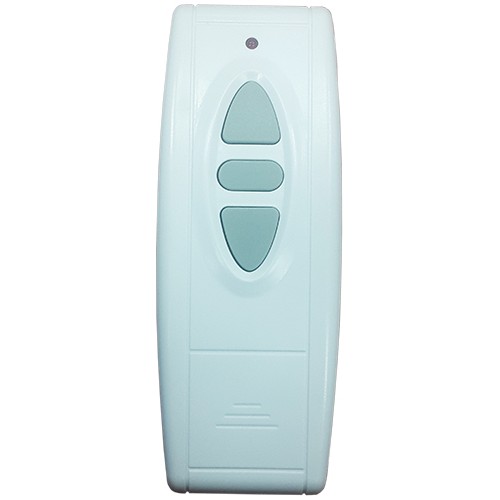

• Three-button RF-CTRL wireless remote control (on-off and brightness adjustment)

European community directives

The product complies with directives:

• Low Voltage Directive: 2014/55/EU
• EMC Directive: 2014/30/EU
• EN 60669-1
• EN 60669-2-1

Package Content

1x Master - DM-400b Dimmer Button remote control
