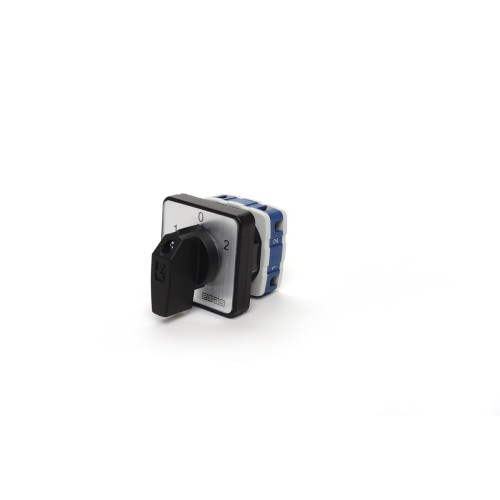

Pole changeover switch PSA040KD134S 1-0-2 1X40

Pole changeover switch

PSA040KD134S 1-0-2 1X40

Cam switches of the PS series are mechanical devices without their own power consumption and are designed to be installed as switching devices in electrical circuits. Also, PS series switches can be used as main switches or group switches for controlling drives based on one- and three-phase motors, switching with the required switching program for control circuits, signaling, in measuring circuits. Used in AC electrical circuits with voltage from 220 to 400 V.

Feautures of Pole changeover switch

• High accuracy
• Variety of products for a wide range of applications
• Long life
• High contact reliability
• Compact design and reliability

Features

General features

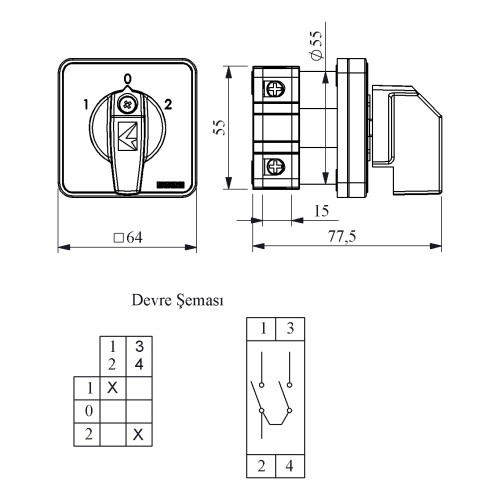

Position: (1-0-2)

Switch Type: Changeover

Pole / Phase: 1 Pole

Frame Size: 64*64

Current: 40A

Mechanical Life (Min Qty): 100000

Electrical Life (Min Qty): 50000

Operating Frequency (On-Off/Hour): Mech.120 Elec.120

Insulation Voltage: 690V

Impulse Withstand Voltage (Uimp): 4 kV

Dielectric Strength (Body-Contact): 1.890V AC

Dielectric Strength (Contact-Contact): 1.890V AC

Isolation Resistance: 10 MΩ MIN. (500 V DC)

Operating Temperature: -25 / +80 °C

Pollution Degree: 3

Protection Degree: IP54

Contact Material: AgNi

Cable Section: 4 mm2

Spin Angle: 60°

Short Circuit Breaking Capacity (Ics): 6 kA

The set contents

1x Pole changeover switch PSA040KD134S 1-0-2 1X40
