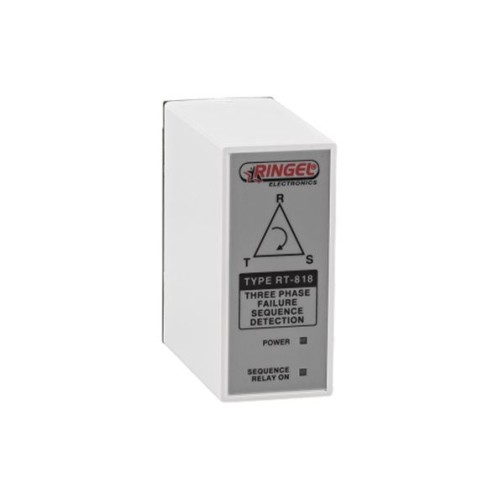

Voltage Monitor Three-phase RT-818 380VAC 8pin

Voltage Monitor Three-phase RT-818 380VAC 8pin Residual Current Circuit Breaker Onetrade

Click Image for Gallery

Voltage Monitor Three-phase

RT-818 380VAC 8pin

Voltage Monitor three-phase supplied voltage monitor within 18% drop limit independent of neutral as well as phase sequence monitoring. The voltage drop limit is internally preset at 18% and symmetrical drop at 12%.

Product characteristics

Three-phase voltage monitoring

Permissible voltage variation limits -18%

For symmetrical loads

Start measuring latency with the feed application

Output: 8Amp SDTP relay

Supply voltage indicator lamp

Out-of-limits and reverse sequence voltage indicator light

Power supply: 380VAC +/10%, 50/60Hz

Output contacts: SPDT AC1 10A/250VAC

Fall Time: <0.5sec (Preset)

Reset Time: <0.5sec (Preset)

Connection type: 8pin lamp base

Degree of protection: (IP)IP20

Release delay: 40ms

Voltage type: AC

Functions:

(Pf) Phase Failure
(Ps) Phase Sequence

Package Content

1x Voltage Monitor Three-phase RT-818 380VAC 8pin

Views: 4083
Product Code: 525132
Availability: Pre-Order

32.15€
Ex Tax: 25.93€
