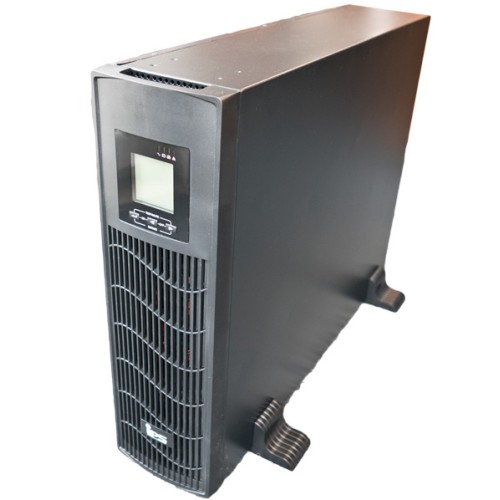

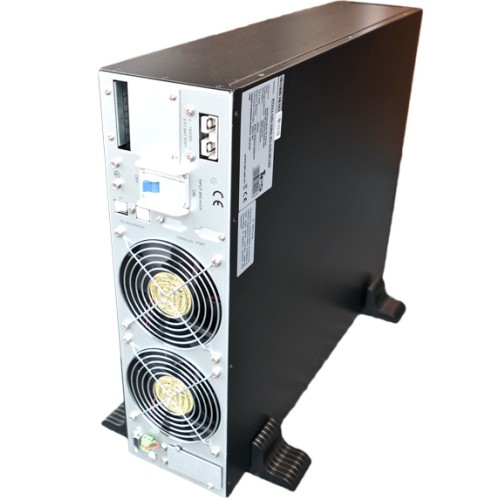

MPL Power Elektro UPS Rack 19" - RTS11-ON-3k0-2U-6x9

MPL Power Elektro UPS Rack 19"

RTS11-ON-3k0-2U-6x9

The MPL Power Elektro UPS Rack 19 "- RTS11-ON-3k0-2U-6x9 is a UPS equipped with Online technology, what it offers your connected equipment effective protection against Overload, short-circuit, overvoltage, temperature, overdischarge and deep discharge. Provides audible alarms and fast backup time.

Features

• Pure sine output
• Hot-swap – easy AGM batteries replacement
• True online double conversion – topology VFI-SS-111 High-frequency
• DSP control porcesor
• RACK 19” case
• Input power factor – 0,99
• Output power factor – 0,9
• Voltage and frequency independent
• Fan auto-regulated
• Battery auto-charge
• New charger design, 90% capacity restore in 3hours
• Autodiagnostic, communication
• Cold start
• User menu interface
• Many transmission protocol

Technical Specifications

Model

RTS11-ON-3k0-2U-6x9

Rated power (reactive/active): 3000VA/2700W

Input

Input voltage: Rated: 230VAC (208V / 220V / 230V / 240V)

                         Input voltage range: 176Vac – 280Vac

                         Bypass: -25%...+15% rated

Input voltage frequency: 40-70Hz Autoselection

Power factor: PF >0,99

Connector: IEC C20

Output

Output voltage: Mains mode: 230Vac +/- 1%,

                             Battery mode: 230Vac +/- 1%,

                             Other settings: 208V, 220V, 240V

Output voltage frequency: 50/60Hz ± 1% (auto selection)

Wave form: Mains mode: pure sine

                     Battery mode: pure sine

Transfer time: Mains -> battery: 0ms

                          To bypass: 4ms

THD: THD <2% linear

          THD <5% non-linear

Output sockets: IEC C13 8pcs

Efficiency: Mains mode: >92%

                   Battery mode: >87%

                   ECO mode: >97%

PF: 0,9

Crest factor: 3:1

Load type: Resistance, inductor, rectifier

Overload protections: 105%...125%: transfer to bypass after 1min

                                        125%...150%: transfer to bypass after 30sek

                                        >150%: transfer to bypass after 300ms

Battery

Type: Lead-acid VRLA AGM, voltage 12V

Charger current: 1A

Montage: Hot-swap case on front panel

Battery quantity: 6 x 9Ah12V

Battery model: IPSH 9-12L, MWH 9-12L

Charger voltage: 72Vdc

Charger time: 3-5h

Backup Time

Backup for 100% load: 2min

Backup for 75% load: 4min

Backup for 50% load: 7min

Backup for 25% load: 21min

Additional battery pack: KU-BAT-2URT-6x9-BC72

Dimension & Weight

Weight: 30,6/34,7 kg

Dimension (w/d/h): 440/728/88 mm

Alarms

Fail: Long beep 4 sek

Low battery level: beep 1 sek

Protections: 2x beep / 1sek

Utility error: beep

Protections

Full protection: Overload, short-circuit, overvoltage, temperature, overdischarge, deep discharge

Sockets: Modem / Tel /Fax

Environment

Humidity: 20~90% RH @ 0~40°C (non-condensated)

Noise: Fan rotation auto-selected

Communication

USB port (standard) & RS232 port (standard): Linux, Windows®98 Server 2016, and Windows®98/2000/2003/XP/Vista/2008/Windows®7/Windows®8/ Windows®10/, UPSmart software

Standards

Conversion type: VFI-SS-111

LVD: EN62040-1:2008

EMC: EN62040-1:2008 + A1:2013, EN61000-3-2:2014, EN61000-3-3:2013

The set contents

1x MPL Power Elektro UPS Rack 19" - RTS11-ON-3k0-2U-6x9

1x Manual
