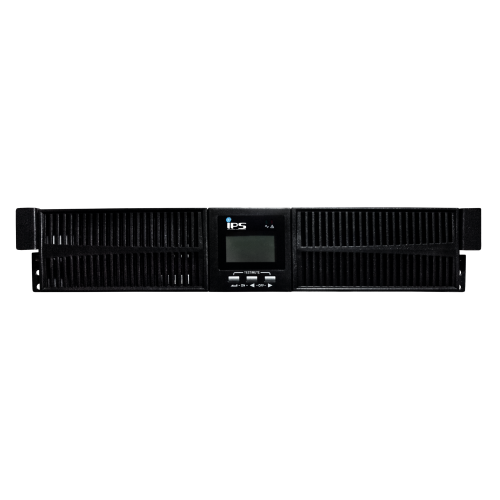

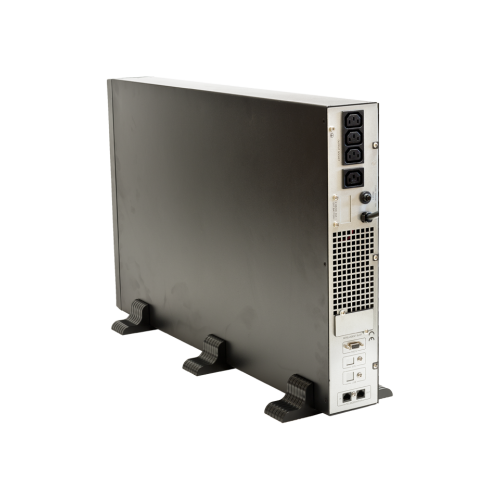

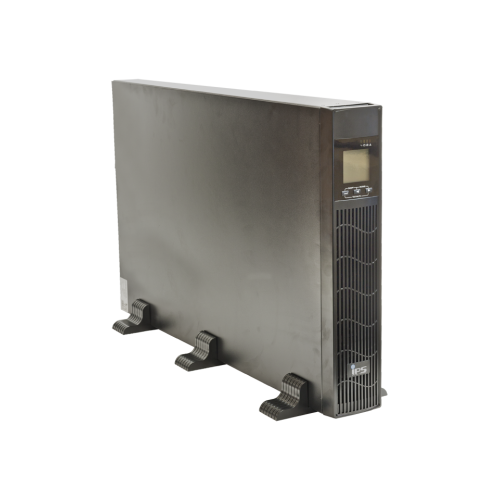

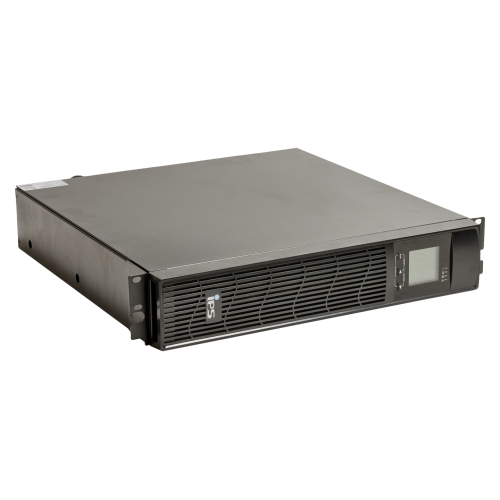

MPL RTS11-ON-2k0-2U Rack UPS - 230V/2000VA/1800W

MPL RTS11-ON-2k0-2U Rack UPS

On-Line 230V/2000VA/1800W, 4x12V/9Ah

The MPL RTS11-ON-2k0-2U Rack UPS 230V/2000VA/1800W is a Rack UPS equipped with On-Line True Sine wave technology, that offers your connected equipment effective protection against Power failure, Overload, short-circuit, overvoltage, temperature, overdischarge and deep discharge.

Features

Technical Specifications

RTS11-ON-2k0-2U

Output power (apparent / active): 2000VA / 1800W

Input

Nominal input voltage: 230Vac ± 1%

Input voltage range: 176Vac-280Vac

Output

Output voltage: 230Vac ± 1%

Output voltage frequency: 50 / 60Hz ± 1Hz

Wave form:

• Mains mode: pure sine wave
• Battery mode: pure sine wave

Transfer time: 0 ms Max: 4 ms

Output sockets: 8 x IEC C13

Battery

Operating voltage: 48Vdc

Battery q-ty: 4 x 12V / 9Ah

Minimum Operating Time after power failure with load : 100% / 75% / 50%: 2 minutes / 5 minutes / 9 minutes / 25 minutes

Typical recharging time: 3-5 hours for 90% of maximum battery capacity.

Protection

Full protection: Short circuit, overload, low battery

Operation Environment

Humidity: 20 ~ 90% RH @ 0 ~ 40 ° C (non-condensing)

Communication

USB (Standard) / RS-232 (option): Linux, Windows®98 Server 2016, and

Windows®98/2000/2003/XP/Vista/2008/Windows®7/Windows®8/ Windows®10/, UPSmart software

Dimensions & weight

Device Weight (kg): 21.4

Depth / width / height (cm) a / b / c: 44x52.8x8.8

Standards

LVD: EN62040-1: 2008

EMC: EN62040-1: 2006, EN61000-3-2: 2006 + A1: 2009 + A2: 2009, EN61000-3-3: 2013

The set contents

1x MPL RTS11-ON-2k0-2U Rack UPS - 230V/2000VA/1800W

1x Manual

4 x Internal Batteries 12V / 9Ah
