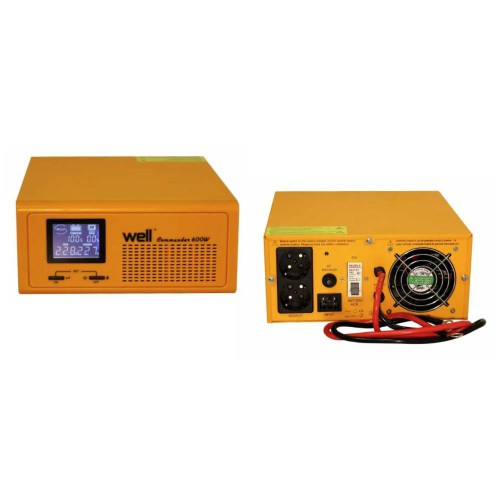

MPL Well Heat Commander 600W Βackup power supply
MPL Well Heat Commander
600W Βackup power supply
The HEAT Commander backup power supply is intended for powering the electrical appliances connected to it in the event of a power failure (battery connection required). It is most often used in heating systems to maintain the operation of water pumps. Alternatively, you can also use HEAT Commander to power security systems, solar systems, alarms, video surveillance systems, computers, servers, arrival attendance systems, automatic garage doors e.t.c.
Features
- UPS Group: Line interactive UPS
- Capacity: 600 W
- Input voltage rated: 230VAC
- Input voltage range :156 - 294VAC
- Input frequency: 50/60 Hz (automatic detection); generator frequency input range: 40 ~ 70Hz
- Output voltage: 220 V, 230 V, 240 V
- Output frequency: 50Hz / 60Hz ± 0.3 (automatically detected or optional)
- Output curve shape: pure sine
- THD: <5% (linear load)
- Efficiency: max. 95% (AC mode); max. 80% (Inverter mode)
- Typical switching time: ≤10 ms
- DC voltage: 12 V
- Normal battery life: Battery dependent
- Protection against: deep discharge, short circuit, low battery voltage, overheating, battery overcharging, overload, overvoltage
- Audible warning: battery mode, fault, low battery capacity, overheating, overload
- Indicators: LCD screen
- Communication interface: no
- Appliance Dimensions: 28 × 29,3 × 16 cm
- Total Weight: 12.5 kg
Application
- Heating systems - water pumps
- Garage Doors
- Low power telecommunication systems
- Wifi systems
- Cctv
- Access control systems
- Control systems
- Measuring systems
Model
UPS -HEATST-COMMANDER600W-WL
Battery Not included.
Operating voltage: 12V
Battery configuration: 1x 12V / 26Ah up to 400Ah
Example of Battery Autonomy at Specific Loads approximately :
Type of VRLA / AGM Battery | Autonomy time at load of 100W (in hours) | Autonomy time at load of 200W (in hours) | Autonomy time at load of 300W (in hours) |
1 × 12V/28Ah | 1.8 | 0.9 | 0.5 |
1 × 12V/40Ah | 3.5 | 1.7 | 1.1 |
1 × 12V/55Ah | 4.6 | 2.3 | 1.5 |
1 × 12V/100Ah | 8.4 | 4.2 | 2.8 |
WARNING!!!
We do not recommend connecting classic car (acid) batteries to the Well UPS-HEATST-COMMANDER 600W-WL device for the following reasons:
Acid batteries are not suitable for indoor installation because they emit highly explosive gases during operation, which can cause an explosion and consequent fire indoors.
Car batteries are suitable for a different regime of rapid discharge and charging and their constant life is significantly reduced at constant charge, so it would be necessary to replace such batteries every 1-2 years, which is irrational from an economic and especially ecological point of view.
There is NO warranty on HEATST-COMMANDER 600W-WL system if it is not connected to a VRLA / AGM battery!
The set contents
1x UPS -HEATST-COMMANDER600W-WL
1x User Manual
