Jolly line 43986 - Professional Multispectrum Instrument 10bit

Jolly line 43986

Professional Multispectrum Instrument 10bit

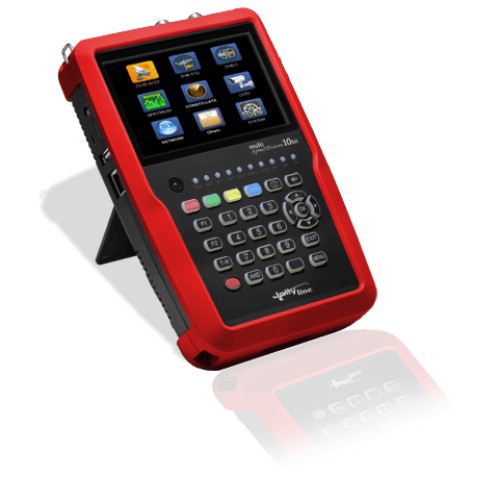

The Jolly line 43986 is a professional instrument 10bit for the correct positioning of the antenna (DVB-T and DVB-T2), of the parabola (DVB-S and DVB-S2 also with SCR Unicable) and DVB-C (optical fiber). Also it is a measuring instrument, professional signal meter for satellite and digital terrestrial and optical fiber with 5.0 "screen, aiming / camera control function including AHD and LAN network test.

Feautures of Combo Signal Analyzer

• 5.0 Inch High Definition TFT LCD Screen
• Fully DVB-S/S2/T/T2/C compliant
• MPEG2, MPEG4, H.264/MPEG4 AVC, H.265/HEVC hardware decoding
• Digital meter for signal strength and quality
• Video resolution: HD 2160p, HD 1080p, 1080i, 720p, 576p and 576i.
• Functions h.265 HVEC 10bit, dCSS, unicable SCR, real-time spectrum, camera control and LAN network test.
• Frequency range: DVB-S / DVB-S2 = 950MHz - 2150MHz, DVB-T / DVB-T2 frequency range = VHF / UHF 48MHz - 862MHz.
• Video decompression: H.265 HVEC 10bit, AVC, AVS +, AVC / H.264, MPEG-2, MPEG-4 Part 2, Div X, X vid, MPEG-1 / h.261 / h.263, AVS.
• Audio decompression: DD / DD +, AAC / AACHE, WMA / WMApro, MPEG I Layer 1, 2, MP3 and 3D SRS.
• Update via USB 2.0 port.
• Processor: 751MHz, 512Mbit DDR3 SDRAM memory.
• Battery: Li-ion 11.1V / 2600mAh.
• Dimensions: 21 x 13 x 4.8 cm.
• Weight: 0,75Kg

Feautures

DVB-S / DVB-S2 (satellite)

Connection: F (female)

Frequency range: 950 MHz ~ 2150 MHz

Signal level: -65 dBm ~ -25 dBm

LNB typed: CSS, SCR Unicable, Universal

DiSEqC: 1.0 - 1.1 - 1.2 - USALS - SCR - dCSS

LNB switch control: 22 KHz

LNB power supply: 13/18 V, max 500mA

Calculation of the angle: Azimuth + Elevation

Type of modulation: QPSK / 8PSK

Symbol rate1 <Rs <45M band (SCPC / MCPC)

Spectrum inversion: Yes

NIT satellite detection: Yes

DVB-T / DVB-T2 (terrestrial)

Connection: F (female)

Frequency range: VHF-UHF / 48MHz ~ 862MHz

Modulation rate: 2 Mbps - 45 Mbps

SCPC and MCPC: Yes

Multi-plp: Yes

Signal level: -87 dBm ~ -20 dBm

Bandwidth: 6/7/8 Mhz

Antenna power supply: 5V, 12 / 24V max 50mA

Type of modulation: QPSK, 16QAM, 64QAM, 256QAM

DVB-C

Connection: F (female)

Frequency range: 110MHz ~ 862MHz

Signal level: -87 dBm ~ -20 dBm

Bandwidth: 6/7/8 Mhz

Type of modulation: QPSK, 16QAM, 64QAM, 256QAM

Symbol rate: 0.2 ~ 7.2 Msps

Type of modulation: 16, 32, 64, 128, 256QAM

LAN networks

Connection: RJ45

Wifi: Yes

Functions: LAN network test

General specifications

Screen: 5 ”TFT LCD True-Color FULL HD

Functions: H.265 HVEC 10bit, dCSS, unicable SCR, real-time spectrum, camera control and LAN network test

Quick signal search: Yes

Acustic signal: adjustable according to the signal level

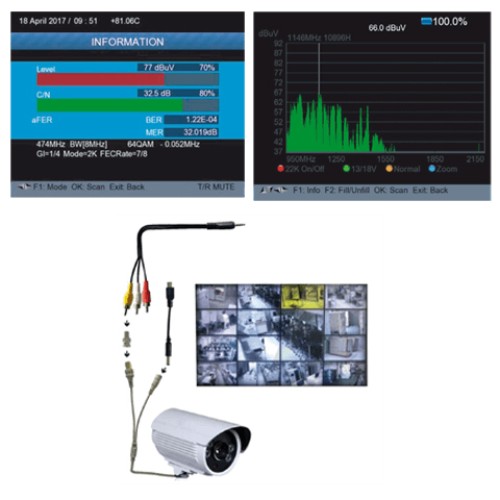

Measurements: CBER - VBER - WED - C / N

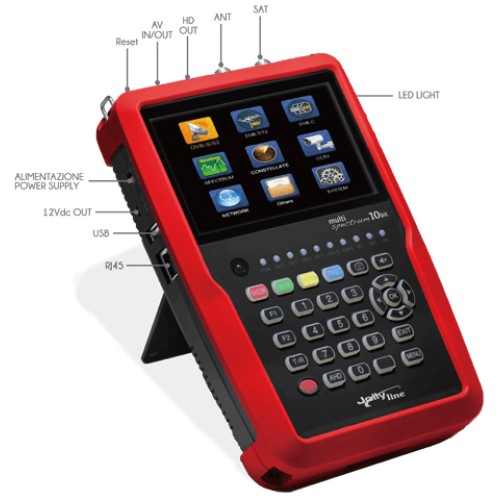

AV Out / In: 3.5mm jack, RCA, Yprpb

HD output: Yes

Video decompression: H.265 HVEC 10bit, AVC, AVS +, AVC / H.264, MPEG-2, MPEG-4 Part 2, Div X, X vide, MPEG-1 / h.261 / h.263, AVS

Video resolution: HD 2160p, HD 1080p, 1080i, 720p, 576p and 576i

Video format: 4: 3, 16: 9, by pan & scan and letter box

Audio decompression: DD / DD +, AAC / AACHE, WMA / WMApro, MPEG I Layer 1, 2, MP3 and 3D SRS

Programmable satellites: 250

Programmable transponders: 6500

Programmable channels: 10,000 (TV and Radio)

Short circuit protection: Yes

Update: via USB 2.0

Processor: 751 Mhz

SDRAM memory: 512 MB DDR3

FLASH memory: 1MB SPI + 128MB Nand

Battery: Li-oN 11.1V / 2600mAh

Home network adapter: input: 100-240Vac 50 / 60Hz - output: 14Vdc / 1,5A

Car adapter: input: 12Vdc - output: 12Vdc / 3.0A

Consumption: 25W max

LED light: Yes

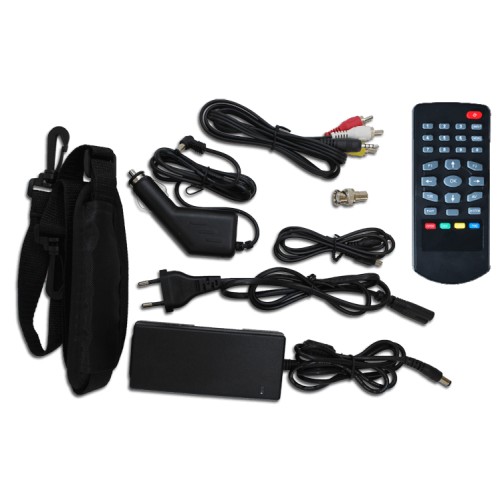

The set contents

1x User’s manual

1x. Power Adapter

1x Power Cable

1x In-vehicle lighter charger adapter

1x Remote control

1x AV IN/OUT cable

1x BNC connector (Female)

1x Power convert cable

1x Jolly line 43986 - Professional Multispectrum Instrument 10bit
