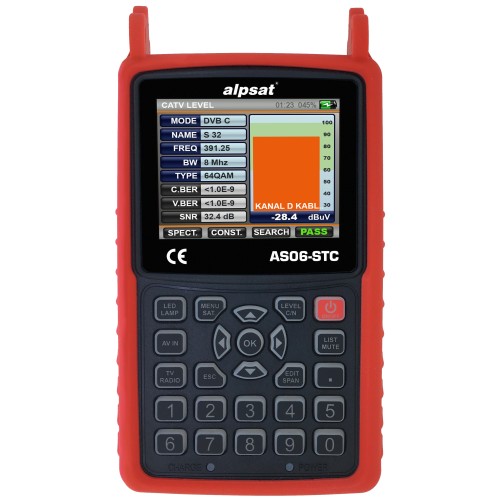

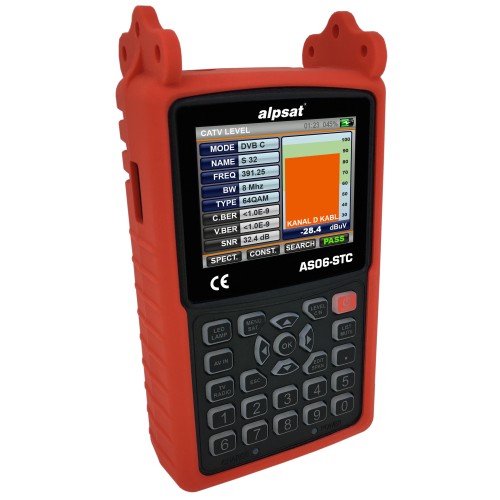

Alpsat AS06-STC is a combo hand instrument that covers the DVB S-S2 / T-T2 / C standards, provides numerous capabilities, complete measurements, fast spectrum, direct level & quality bars with audible indication for easy centering of the dish and antenna signal optimization as well as remarkable spectrum capabilities such as carrier identification while displaying an SD / HD image across all free channels. In addition to the known measurement and spectrum functions, we have constellation indications, along with measurements such as C / N, MER, bBER, level and quality bars, digital data, and transponder switching for direct control. With TP Control, we have a four-transponder bar code per satellite or dual display for 8 transponders from 2 satellites, eg from 2 LNBs simultaneously or from a multiswitch.. With the Multilevel control, we have a transponder for 2 LNBs, such as Monoblock LNB or even a multiswitch. With the Multilevel control, we have a transponder for 2 LNBs, such as Monoblock LNB or even a multiswitch. With Auto Port Search, the instrument tells you which satellite corresponds to which DiSEqC (Auto DiSEqC) door. The instrument features a 3000mAh 7.4V lithium-ion rechargeable battery that can be replaced and provides 4 hours of autonomy depending on the use.

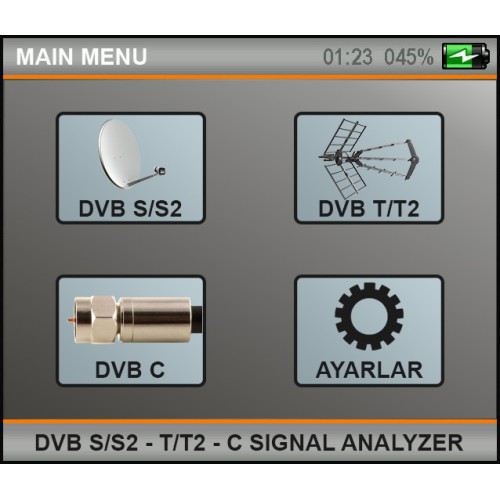

Feautures of Combo Signal Analyzer

• DVB S-S2 / T-T2 / C COMBO Signal Analyzer
• All in one 45-2150mhz 75 ohm (“F”) Rf input
• AHD-TVI-CVI and Analog video input for CCTV cameras
• 3.5” high resolution and high brightness display
• MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs all on one screen.
• Support AAC supplied, DOLBY
• 800 MHz processor speed - 8MB Memory
• 3000mAh 7.4V replaceable Li-Po Battery with up to 4 hours duration
• Usb Memory Software upgrade and Frequncy Database update
• Pc software for Frequency database update
• 30 Catv , 30 Terresterial , 150 Sat programmable plan by PC or Local Keyboard.
• 5000 frequency memory

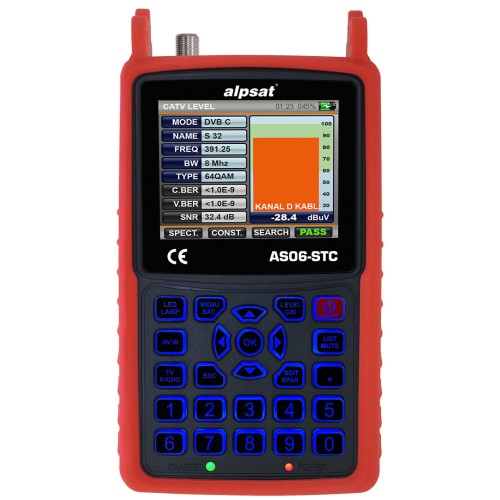

• Numeric Silicone keypad with backlight
• Power save timer functions
• dBm , dBuV and dBmV levels
• Level warnings with speaker
• Led Flash Light
• Test Voltage levels for end user
• Weight only 1 kg with battery
• Size 190mm X 110mm X 60mm
• Temperature range 0 °C to +50 °C
• Humidity Up to 90% non condensing
• 12Volt 1.5A Charger and Car Lighter Charger

Feautures

Satellite

DVB S/S2 Measuring SAT: 950 - 2150 Mhz

-80 to 0 dBm power measurment range

BER , MER , C/N digital measurments.

Level Measurement Accuracy 1 dB typ. (2.5 dB max.)

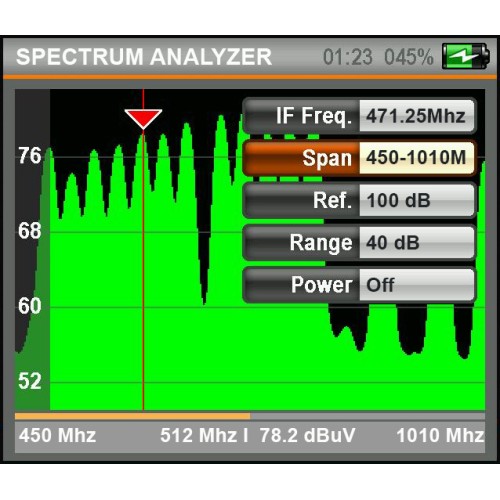

Spectrum Analyzer: Real Time Spectrum

50 , 75 , 150 , 300 , 600 , 1200mhz Spectrum Span

Automatically TP identifies NIT function in spectrum menu

Tp Control : 4 Tp’s Levels of one and two Satellite in one screen

Multi Sat Level Control: Dual Feed LNB 2 satellite’s levels in one screen

Satellite Constellation: Qpsk & 8psk for Sat.

Auto Port Scan: Diseqc 1.0-1.1-Unicable ports search for sat.

150 satellite’s more than 2000 TP Frequency current database

Automatic Signal Quality analysis assistant

HD & SD Sat Tv Video

FEC: DVB-S: 1/2, 2/3, 3/4, 5/6, 7/8 - DVB-S2: 1/2, 2/3, 3/4, 5/6, 8/9, 9/10, 2/5, 3/5

Symbol Rate: 1 to 45MS/s Full automatic selection

Supports DiSEqC 1.x, DiSEqC 2.x and USALS

Unicable 1&2 EN50494/EN50607

Lnb Power Supply : 13V/18V/21V - 500mA

Supports 32 Lnb Type

KA , KU, C , L / R band

Terrestrial

DVB T/T2 and Analog Measuring Terr : 45 - 1002 MHz

-90 to 0 dBm power measurment range

BER , MER , C/N digital measurments.

Analog Terresterial level and V/A ratio 4dB to 26dB

Analog Audio carrier 4,5MHz, 5,5 MHz, 6,0 MHz, 6,5 MHz

Level Measurement Accuracy 1 dB typ. (2.5 dB max.)

Spectrum Analyzer: Real Time Spectrum with capture

15 , 30 , 50 , 100 , 200 , 500 , 1000mhz Spectrum Span

Automatically TP identifies NIT function in spectrum menü

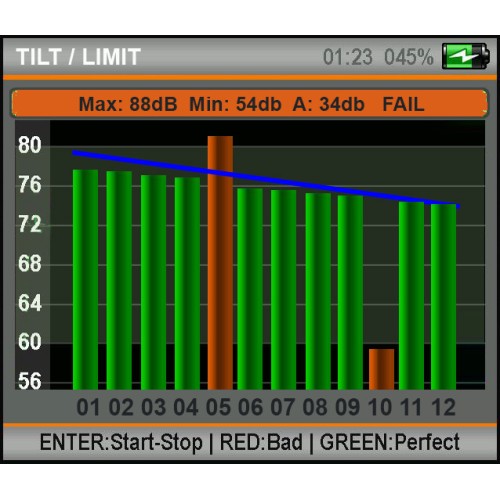

TILT / LIMIT Function for full band

Automaticly scan and prapare search table

Edit Frequency Plan database by Pc or Keypad

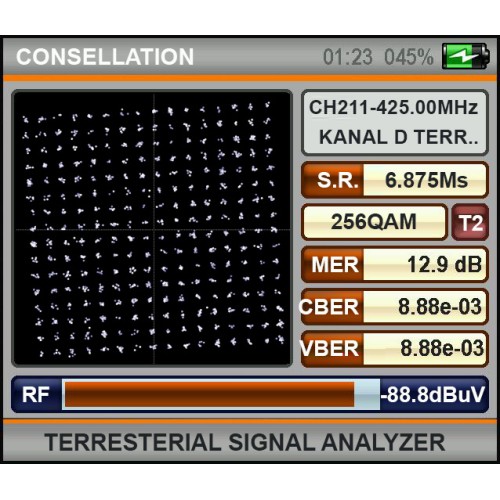

Terr Constellation: QPSK, 16QAM, 64QAM (DVB-T) 256QAM (DVB-T2)

FEC : DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8 , DVB-T2:1/2, 2/3, 3/4, 5/6, 7/8, 3/5, 4/5

1.7 MHz , 5MHz , 6 MHz, 7 MHz, 8 MHz Channel Bandwidth

30 Frequency Plan more than 4000 TP Frequency

5V / 12V / 20V-250mA antenna power supply

Automatic Signal Quality analysis assistant

HD & SD TERR Digital Video

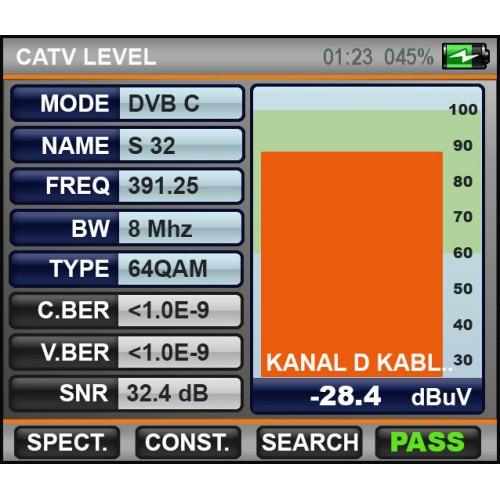

Cable TV

DVB C and Analog Measuring CATV : 45 - 1002 MHz

-90 to 0 dBm power measurment range

BER , MER , C/N digital measurments.

Analog Catv level and V/A ratio 4dB to 26dB

Analog Audio carrier 4,5MHz, 5,5 MHz, 6,0 MHz, 6,5 MHz

Level Measurement Accuracy 1 dB typ. (2.5 dB max.)

Spectrum Analyzer: Real Time Spectrum with capture

15 , 30 , 50 , 100 , 200 , 500 , 1000mhz Spectrum Span

Automatically TP identifies NIT function in spectrum menü

TILT / LIMIT Function for full band

Automaticly scan and prapare search table

Edit Frequency Plan database by Pc or Keypad

Catv Constellation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM

DVB-C & QAM Annex A/C

Symbol rate: 2 to 6.999MS/s - Automatic selection

6 MHz, 7 MHz, 8 MHz Channel Bandwidth

30 Frequency Plan more than 4000 TP Frequency

Automatic Signal Quality analysis assistant

HD & SD CATV Digital Video

The set contents

1x Alpsat AS06-STC - Combo Signal Analyzer

1x Red Silicone Case

1x Bag

1x Measuring cable with Quick F connector about 1 - 1.5m

1x F female to F female

1x Καλώδιο ήχου-βίντεο

1x Charging adapter 110-240V / AC - 12V / DC 1500mA

1x Charger for car (12 V connection cable)

1x Instruction Manual
