Manhattan ICA-PLB 320M2 - Full-Motion TV Wall Mount 32-55" Black

Manhattan ICA-PLB 320M2

Full-Motion TV Wall Mount 32-55" Black

The Manhattan ICA-PLB 320M2 is a universal mount for mounting flat LED / LCD or curved TVs. Robust mounting plate and optimized projections with tilt +3 to -15°, rotation +/-90° and level adjustment +/-3° after installation offering optimal viewing angles.

Features of TV Wall Mount

• Supports a 32" to 55" flat screen TV weighing up to 35 kg
• Optimized viewing thanks to the +3 to -15° tilt, +/-90° rotation and +/-3° level adjustment that can be done post-installation
• Supports TVs with a distance from the wall of 63 to 358 mm
• Durable steel construction with powder coating
• Includes bubble level
• With integrated cable management system to reduce clutter
• Easy installation, ideal for home, office and commercial applications
• Complies with VESA standards from 100x100 to 400x400 (for example, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400)

Specifications

• Suitable for most flat or curved screens from 32" to 55"
• Supported weight: 35 kg
• Inclination: +3° to -15°
• Rotation: +/-90°
• Post-installation level adjustment: +/-3°

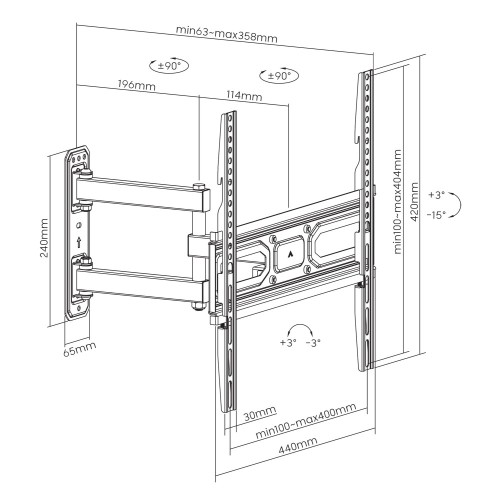

• Dimensions (D x W x H): 358 x 440 x 420 mm
• Distance from the wall: 63 to 358 mm
• Net weight: 2.2 kg
• Gross weight: 2.63 kg
• Material: steel
• VESA Standard: 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400

The set contents

• 1x  Manhattan ICA-PLB 320M2 - Full-Motion TV Wall Mount 32-55" Black
• 1x Attachments (screws, plugs ...)
• 1x  Installation instructions
