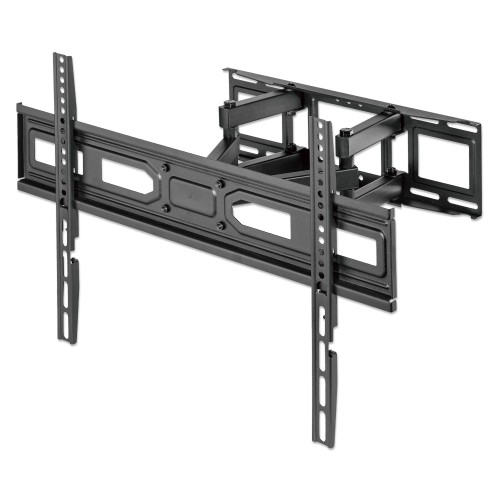

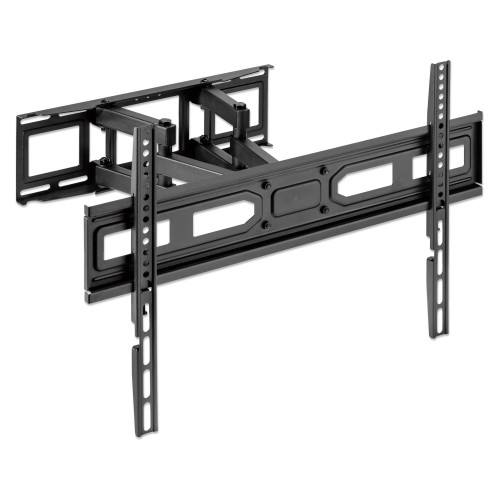

Manhattan ICA-PLB 344LM2 - Full-Motion TV Wall Mount 37-80" Black

Manhattan ICA-PLB 344LM2

Full-Motion TV Wall Mount 37-80" Black

The Manhattan ICA-PLB 344LM2 is a universal mount for mounting flat LED / LCD or curved TVs. Robust mounting plate and optimized projections with +3 to -15° tilt, +/-60° rotation and +/-3° level adjustment after installation offering optimal viewing angles.

Features of TV Wall Mount

• Supports flat or curved screen TVs from 37" to 80" and weighing up to 40 kg
• Optimized views with +3 to -15° tilt, +/-60° rotation and +/-3° post-installation level adjustment

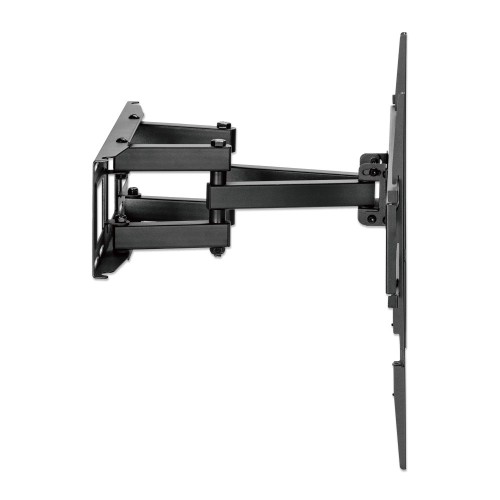

• Distance from the wall from 67 to 355 mm
• Durable steel construction with powder coating
• Includes bubble level

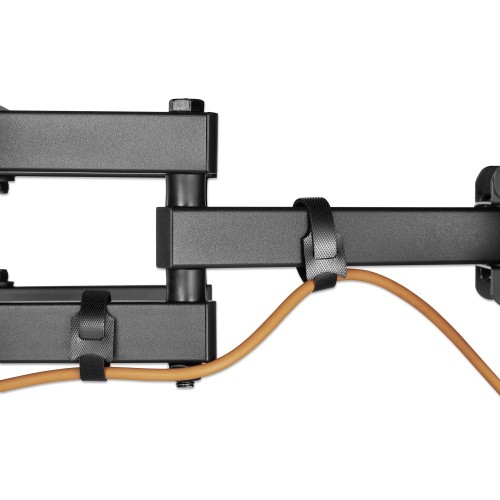

• With integrated cable management system to reduce clutter
• Easy installation, ideal for home, office and commercial applications
• Complies with VESA standards from 100x100 to 600x400 (such as 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 600x200, 400x400, 600x300, 600x400)

Specifications

• Ideal for most flat and curved screens from 37" to 80"
• Supported weight: 40 kg
• Tilt: from +3 to -15°
• Rotation: +/-60°
• Post-installation level adjustment: +/-3°

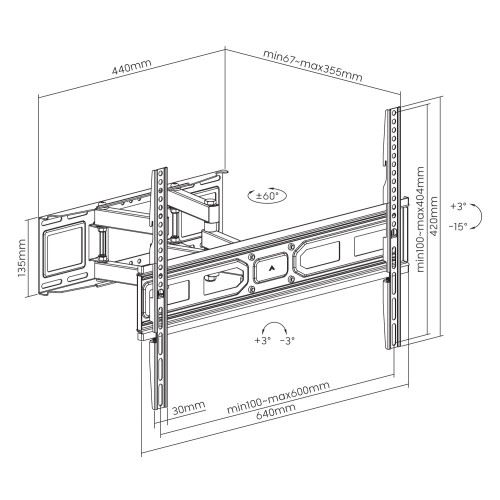

• Dimensions (D x W x H): 420 x 640 x 355 mm
• Distance from the wall: 67 to 355 mm
• Net weight: 3.4 kg
• Gross weight: 3.92 kg
• Material: steel
• VESA Standard: 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 600x200, 400x400, 600x300, 600x400

The set contents

• 1x  Manhattan ICA-PLB 344LM2 - Full-Motion TV Wall Mount 37-80" Black
• 1x Attachments (screws, plugs ...)
• 1x  Installation instructions
