Marmitek IR Control 10 Xtra - RC extender

Marmitek IR Control 10 XTRA

Infrared Remote Control Extender max. 300m

With the IR Control 10 Xtra you can extend the IR (infrared) signals from your own remote control. The IR Control 10 Xtra gives you the opportunity to control an unlimited number of AV devices when it’s stored away in a closed cabinet or placed out of sight!

Feautures of RC extender

• Professional set to operate an unlimited number of AV devices inside TV furniture or a cabinet, even from a long distance, using your current remote control.
• With the exception of the tiny infrared receiver, the complete set can be placed completely out of sight.
• With infrared blaster feature to operate multiple devices directly, without searching for the infrared eyes on your equipment.
• Works with virtually all brands and models and is suitable for new infrared code formats (such as RC-MM), which are used in many new HD devices and digital TV decoders.
• Due to advanced filtering techniques, impervious to use near flat screen TVs (LCD, LED) and with indirect sunlight.

How it works?

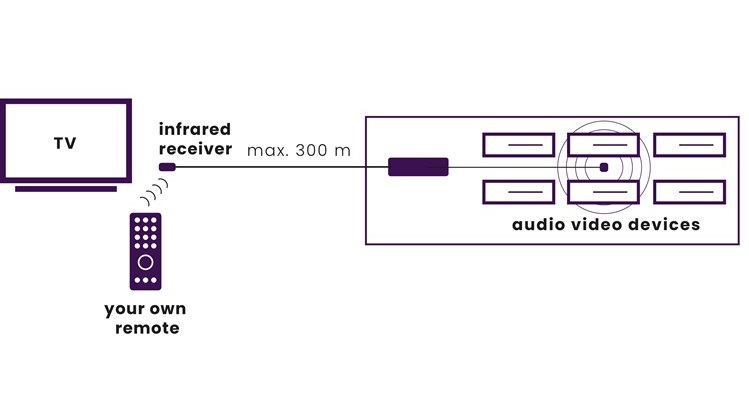

Locate your A/V equipment in a closed cupboard, TV cabinet or even in another room. The IR receiver must be installed in view of your own remote control. Stick the IR blaster LED wherever you want in the cabinet and conceals the IR main module neatly. Point the remote control at the IR receiver in order to send the appropriate command to the IR LEDs (via the IR main module). These will then immediately pass this onto the A/V equipment.

Features

IR Module

Power supply POWER: 100-240VAC 50/60Hz, 12VDC 200mA (supplied)

Power supply STATUS: 5-24VDC / 5-12VAC plug, - 5.5mm outside / + 2.1mm inside (not supplied)

IR input: 1x 3.5mm jack connector, for standard IR receiver

                1x screw connector, for up to 6 in parallel connected IR receivers. Extendable up to 300 meters using CAT5 (or equivalent)

IR output: 4x 3.5mm jack plug (mono), switchable for IR extension cables with emitter or blaster LEDs

IR receiver

Frequency range: 30-60 KHz

IR reception range: ± 10 metres

IR reception angle: 90º (+45º/-45º from centre)

Length of cable: 3 metres, extendable up to 300 meters

IR reception indication: YES, purple indication LED

Status indication: YES, green indication LED

IR Extension cable

Connection: 3.5mm jack plug (mono)

IR LEDs: 2x IR emitter LEDs

Cable length: 3 meters

The set contents

1 x IR Module

1 x IR Receiver:

      The IR Control 10 XTRA™- contains an surface mount IR Receiver

      The IR Control 11 XTRA™- contains a panel mount IR Receiver

2 x IR Extension cable with one IR blaster LED

1 x IR Extension cable with two IR emitter LEDs

1 x AVR connection cable

1 x Power adaptor

1 x Manual
