Marmitek Invisible Control 6 - RC extender

Marmitek Invisible Control 6

Infrared Remote Control Extender

With the Invisible Control 6 you can extend the IR (infra-red) signals from your own remote control. The Invisible Control 6 gives you the opportunity to control your A/V equipment when it’s stored away in a closed cabinet or placed out of sight!

Marmitek products are manufactured with the utmost care and are exceptionally high quality.

Feautures of RC extender

• Operate your A/V equipment even through closed cupboard doors.
• Operate your A/V devices with ease without having to have them in view (max. 6).
• Works with almost all brands and models and is also suitable for new IR code formats (such as RC-MM) which are used in many new HD devices and digital TV decoders.
• Incorporates new IR filter techniques for use in the vicinity of Flat Screen TVs (Plasma, LCD and LED), indirect sunlight and energy-efficient light bulbs.
• With the exception of the very small IR receiver, the complete set can be located completely out of sight.
• Works on USB mains power (adapter included) or can be connected to a free USB port on one of your A/V devices.
• Compatible with all digital TV providers in Europe, like BT Vision, Freesat, Freeview, Sky TV, Sky+, Sky HD and Virgin.

How it works?

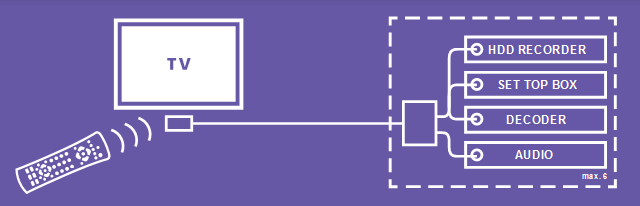

Locate your A/V device in a closed cabinet or TV unit. The IR receiver must be located in view of your remote control. Stick the IR LEDs on the front panel of your A/V equipment and then hide the IR main module. Point the remote control towards the small IR receiver in order to send the desired command (via the IR module) to the IR LEDs; these will then send on this infrared command to the A/V equipment.

Features

IR Module

Feed POWER: 100-240VAC 50/60Hz, mini USB (supplied)

IR LEDs connections: 2 x 2.5 mm jack (mono)

IR Receiver connection: 1 x 3.5 mm jack (mono)

IR receiver

Frequency range: 30-60 KHz

IR reception range: ± 10 metres

Length of cable: 3 metres

IR reception angle: 60° (+30°/-30° from centre)

IR Extension cable

IR LEDs: 2x IR extender cables with 3 LEDs

Length of cable: 1 - 2 metres

The set contents

1x IR Receiver + sticky strip

1x IR Module + sticky strip

2x IR extender cables with 3 LEDs

1x Power Adapter

1x User manual
