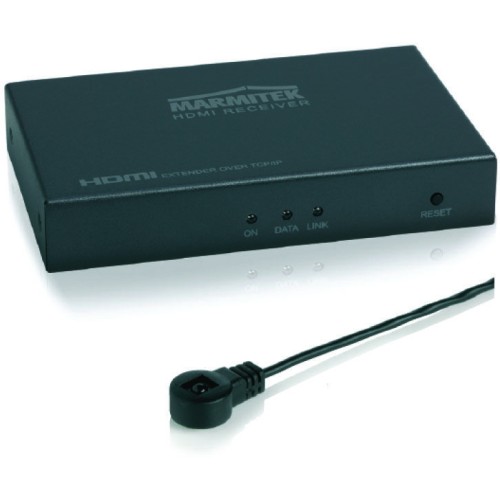

Marmitek MegaView 91 - Extra receiver

Marmitek MegaView 91

Extra receiver

In Marmitek MegaView 91 you can add up to 250 receivers in the same network and operate all from the same transmitter.

Feautures of hdmi extender

• Watch TV programmes or films and view photos from, for example, your digital TV decoder, Media Centre PC, Blu-ray player or hard disk recorder anywhere in the home on your TV/projection screen, in HD quality.
• The built-in HDMI splitter enables you to connect an HDTV to the transmitter, so you can still watch the connected devices locally
• Extend your HDMI cable up to 100 metres using one CAT5e/CAT6 cable!
• Even works on your existing home network (LAN) including routers and switchers.
• Multiple receivers may simultaneously be connected to the same network.
• Supports up to 1080p Full HD.
• Operate your connected A/V equipment remotely, using the infrared return function.

How it works?

Connect the HDMI source (Blu-ray disc player, TV Decoder, Media Centre PC, etc.) to the MegaView 91 transmitter, using an HDMI cable (not provided). Optional: connect an HDTV to the MegaView 91 transmitter with an HDMI cable to HDMI OUT, to be able to continue to watch TV in this room. Connect the MegaView 91 receiver to the appliance shown (e.g. HDTV or projector), using an HDMI cable (not provided). Use one CAT5e/6 Ethernet cable to connect the MegaView 91’s transmitter to the receiver. The MegaView 91 can either be connected by using a single cable, or through an existing home network (LAN) in combination with network switches and routers. Finaly, connect the power adapter on the ‘DC/5V’ connection on the MegaView 91 and plug the adapter into a socket.

Features

Video

Data transmission: TCP/IP, H.264 compression

Supported HDTV resolutions: 480p, 576i, 576p, 720p, 1080i, 1080p

Maximum Pixel Frequency (max): 225 MHz

Maximum Bit Rate (max): 2.25 Gbps (6,75 Gbps per channel)

Audio

Supported audio formats: PCM stereo

Receiver

HDMI output: (19-pin female) 1 HDMI

RX LAN: RJ45, EIA/TIA T568B

IR Receiver (MegaView 91)

Frequency range: 30 - 60 KHz

IR reception range: ± 6 metres

Connection: 3.5mm jack plug

Cable length: 100 cm

Power

Input: 100-240VAC @50-60Hz

Output: 5VDC @ 1A

The set contents

1x receiver (HDMI Receiver)

1x Infrared receiver

1x Infrared blaster LED

1x Power adaptor

1x User Manual
