Marmitek Connect 621 UHD 2.0 - HDMI Switcher

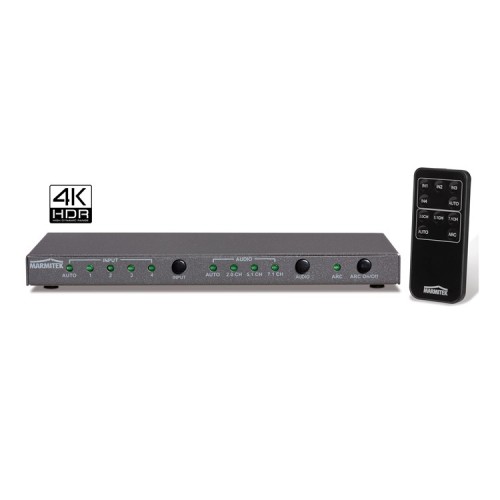

Marmitek Connect 621 UHD 2.0

HDMI switch with 4K60 (4:4:4) UHD|HDCP 2.2UHD - 4 in/ 1 out | Digital audio output

Marmitek Connect 621 UHD 2.0 allows you to use 1 cable to connect 4 HDMI sources to your TV, without any loss of signal or encryption. It's ideal when your TV doesn't have enough HDMI inputs, or if you want to connect the devices to your TV using just one cable. Examples of HDMI sources are game consoles such as a PlayStation or Xbox, Blu-ray players, digital TV decoders and all other HDMI devices. The Marmitek Connect 621 UHD 2.0 supports Ultra HD (4k), Full HD (1080p) and all 3D formats, making it suitable for all your existing and future equipment. The digital audio output can be used to transmit the sound from all your connected HDMI devices to your AV amplifier, using a single cable.

Feautures of hdmi switcher

• Suitable for simultaneously connecting 4 HDMI devices to your TV.
• Enjoy the latest Ultra HD content and watch Netflix or a Blu-ray movie in 4K, while maintaining ultimate contrast and beautiful colours.
• Suitable for the latest Ultra HD 4K60 resolution (3840 x 2160 / 60Hz), High Dynamic Range (HDR), Deep Color and 4:4:4 chroma colours.
• With additional digital audio output to also connect your AV receiver using a single cable, with the option to select your desired audio format (2.0 / 5.1 / 7.1).
• Supports Audio Return Channel (ARC) to avoid lip-sync problems.
• Supports Dolby Atmos and DTS:X and all other common audio formats.
• Switches automatically and/or with remote control.
• Includes built-in repeater and equalizer for correcting any signal loss.
• Separate IR receiver for operating the switcher if it is not within line of sight.
• No interference, due to solid metal, interference-free high-quality housing.
• Supports HDCP 2.2 for playing protected 4K Ultra HD content.

How it works?

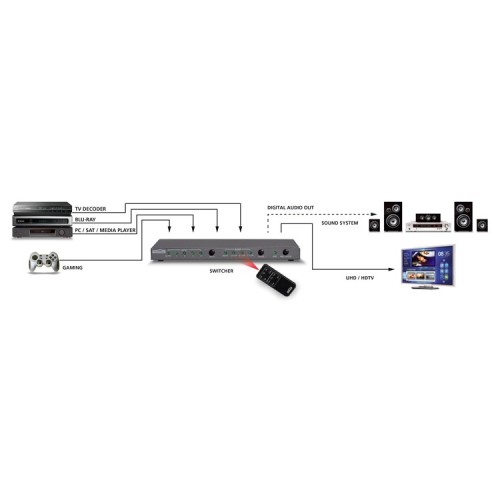

Use an HDMI cable to connect the HDMI sources to the HDMI ports marked as “HDMI inputs”. Use an HDMI cable to connect the TV to the HDMI port marked as “HDMI output”. To use the ARC function, your TV should support it. Please refer to your TV's manual to check which HDMI port supports ARC. Connect the AV receiver to the combined digital/analogue output marked "Audio out". Use an optical cable along with the included Toslink adapter for "Digital Audio". This output supports the audio formats DTS 5.1, Dolby Digital/AC-3 and PCM stereo. Use a 3.5 mm stereo mini-jack cable for "Analogue audio". This output supports analogue stereo audio formats. Connect the power adapter to the "DC 5V" and insert the plug into the socket.

Features

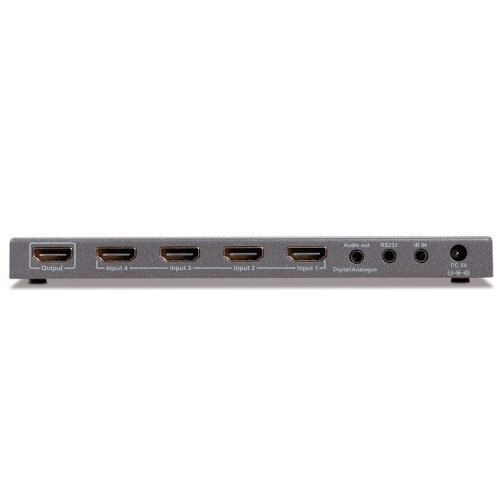

Connections

HDMI Input: (19-pin female) 4 HDMI

HDMI Output: (19-pin female) 1 HDMI

HDMI cable length: max. 15 metres

Digital audio output: 1 x Toslink 3.5 mm (optical)

Analogue audio output: 1 x Stereo 3.5mm

RS-232 connector: 1 x 3.5 mm (enabling control through pc or control panel)

Video

Supported resolutions: 4K (4096x2160)@24/30/50/60Hz, 480i~1080p@50/60Hz,1080p @120Hz and 3D@1080p/60Hz

Supported PC resolutions: max. QSXGA (2560x2048@60Hz)

HDMI standards: HDMI 2.0b, HDR, CEC, EDID, DVI, all 3D formats and Deep Color 36-bit

HDCP standards: HDCP 2.2 and HDCP 1.4

Colour formats: RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2

Colour depth: max. 36-bit

Throughput speed: max.18 Gbit/s

Clock frequency: 600MHZ

Audio

HDMI audio formats: DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/ AC3, DTS 5.1 and PCM stereo.

The set contents

1x  HDMI Switcher

1x Remote Control (battery included)

1 x IR Receiver

1 x HDMI Cable

1 x Toslink mini adapter

1x Power Adapter

1x User Manual
