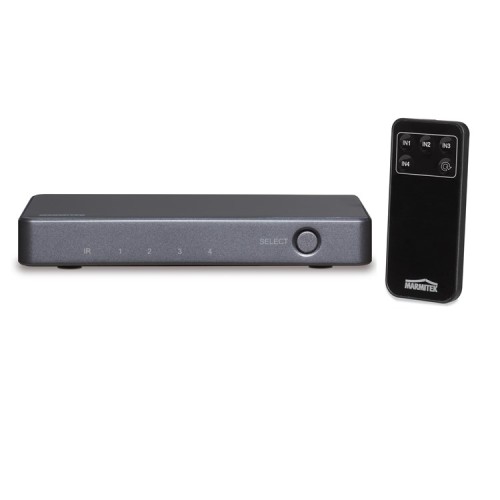

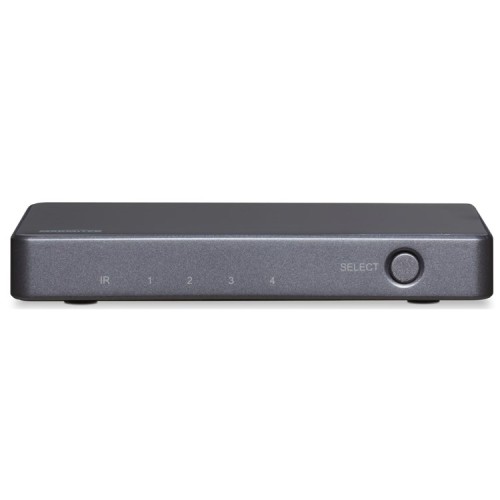

Marmitek Connect 620 UHD 2.0 - HDMI Switcher

Marmitek Connect 620 UHD 2.0

HDMI switch with 4K60 (4:4:4) UHD|HDCP 2.2UHD - 4 in/ 1 out

Marmitek Connect 620 UHD 2.0 allows you to use 1 cable to connect 4 HDMI sources to your TV, without any loss of signal or encryption. It's ideal when your TV doesn't have enough HDMI inputs, or if you want to connect the devices to your TV using just one cable. Examples of HDMI sources are game consoles such as a PlayStation or Xbox, Blu-ray players, digital TV decoders and all other HDMI devices. The Marmitek Connect 620 UHD 2.0 supports Ultra HD (4k), Full HD (1080p) and all 3D formats, making it suitable for all your existing and future equipment.

Feautures of hdmi switcher

• Suitable for simultaneously connecting 4 HDMI devices to your TV.
• Enjoy the latest Ultra HD content and watch Netflix or a Blu-ray movie in 4K, while maintaining ultimate contrast and beautiful colours.
• Suitable for the latest Ultra HD 4K60 resolution (3840 x 2160 / 60Hz), High Dynamic Range (HDR), Deep Color and 4:4:4 chroma colours.
• Supports Dolby Atmos and DTS:X and all other common audio formats.
• Switches automatically and/or with remote control.
• Includes built-in repeater and equalizer for correcting any signal loss.
• Supports HDCP 2.2 for playing protected 4K Ultra HD content.

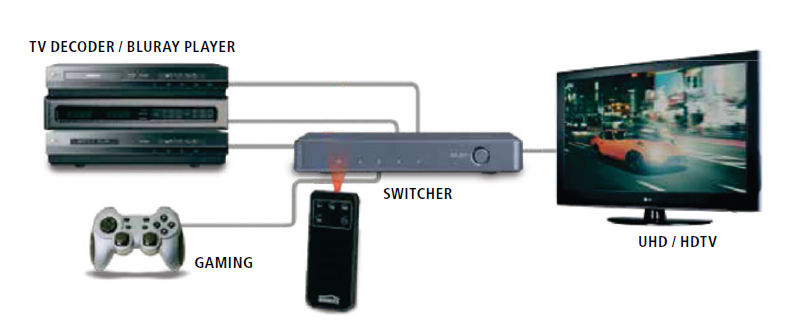

How it works?

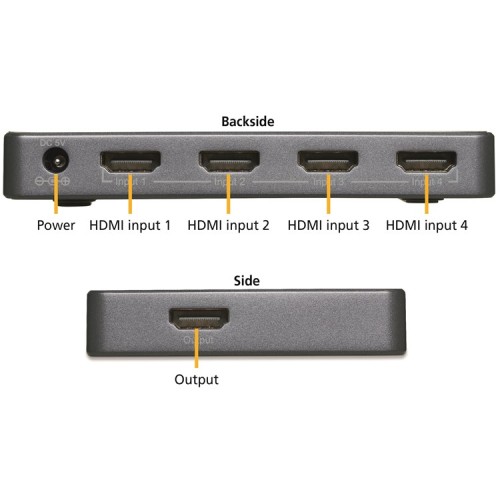

Use an HDMI cable to connect the HDMI sources to the HDMI ports marked as “HDMI inputs”. Use an HDMI cable to connect the TV to the HDMI port marked as “HDMI output”. Connect the power adapter to the "DC 5V" and insert the plug into the socket.

Features

Connections

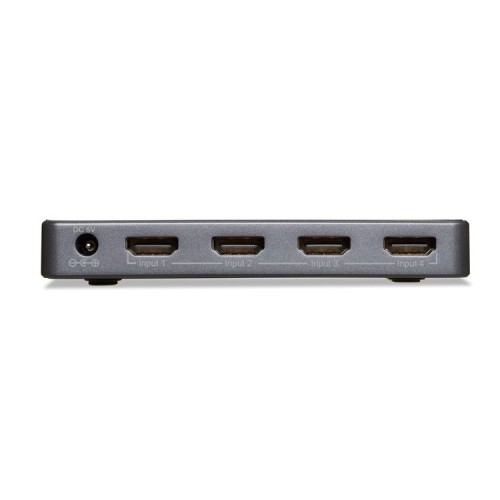

HDMI Input: (19-pin female) 4 HDMI

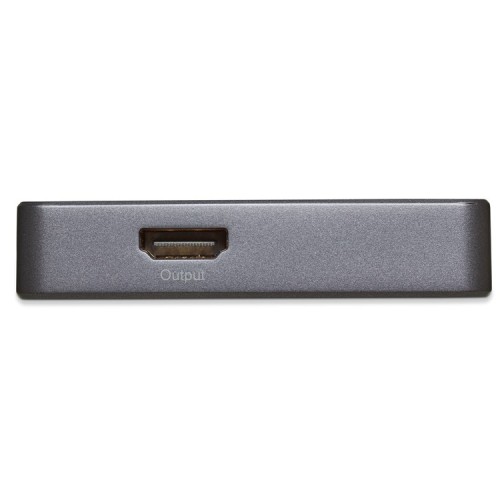

HDMI Output: (19-pin female) 1 HDMI

HDMI cable length: max. 15 metres

Video

Supported resolutions: 4K (4096x2160)@24/30/50/60Hz, 480i~1080p@50/60Hz,1080p @120Hz and 3D@1080p/60Hz

Supported PC resolutions: max. QSXGA (2560x2048@60Hz)

HDMI standards: HDMI 2.0b, HDR, CEC, EDID, DVI, all 3D formats and Deep Color 36-bit

HDCP standards: HDCP 2.2 and HDCP 1.4

Colour formats: RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2

Colour depth: max. 36-bit

Throughput speed: max.18 Gbit/s

Clock frequency: 600MHZ

Audio

HDMI audio formats: DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/ AC3, DTS 5.1 and PCM stereo.

The set contents

1x  HDMI Switcher

1x Remote Control (battery included)

1x Power Adapter

1x User Manual
