Golden Interstar ALPHA X - DVB-S2 H.265 Linux

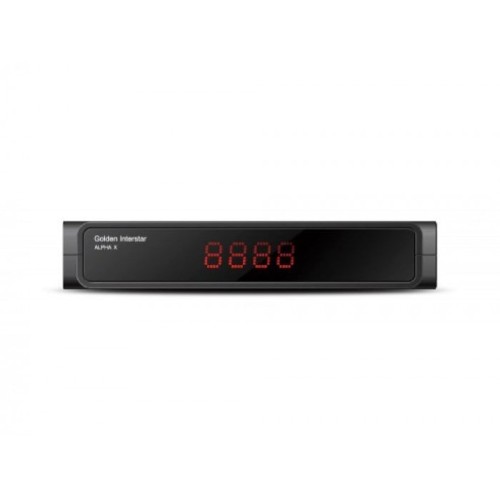

Golden Interstar ALPHA X

DVB-S2 H.265 IPTV Box

Golden Interstar ALPHA X is a Full HD (1080P) satellite receiver for reception of the Free-to-Air (FTA) channels with Linux OS operating system that supports the new H.265 / HEVC code. Thanks to the built-in DVB-S2X tuner, the receiver receives all freely receivable T2-MI PLS multistream transmitters. It is not only a satellite receiver, but also a multimedia player and an IPTV and DLNA player. The advantage of the device is the support of the MultiStream (MIS) program reception, which is used in some satellites to distribute program signals to terrestrial transmitters or cable distributions.

Feautures DVB-S2 Receiver

• DVB-S2 Multistream-Tuner
• H.265 / HEVC - HD and SD resolution
• Linux OS high-resolution user interface
• Blind scan function (low symbol rates)
• WIFI (WLAN) & 3G modem via USB
• DiSEqC 1.0, 1.1, 1.2 & USALS support
• YouTube & RedTube
• Stalker middleware & Xtream IPTV ready
• Unicable and FastScan support
• EPG (electronic program guide) + subtitles & teletext
• DLNA support
• Conax card reader
• 7-Segment Display

Features

Tuner

Frequency range: 950 ~ 2400MHz

Input level: -80 ~ -20dBm

Modulation: DVB-S: 1/2, 2/3, 3/4, 5/6, 7/8, DVB-S2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, (QPSK) 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK), 16APSK, 32APSK

Video

Decoder formats: MPEG2/4, H.264, H265, AVS, AVS plus, JPEG/MJPEG HD

Picture resolutions: HD 1.4 (1080p, 1080i, 720p, 576p, 480p)

Picture formats: 4:3, 16:9, Auto

Video Outputs: HD out (1.4), CVBS

Audio

Decoder formats: MPEG1, MPEG2 Layer 1&2, Dolby Digital AC3, AAC/HE-AAC, MP3

Audio outputs: RCA x 2 (L/R), Digital out

USB 2.0

Volume support: Not limited

Data formats supported: MP3, WMA, JEPG, BMP, AVI, MKV and others

Power supply

Power adapter: 100~240V 50/60Hz (external power supply) to 12v DC

Maximum energy consumption: 10W

Energy consumption in STBY mode: <0.5W

Connections

1 x LNB IN

2 x USB ports

1 x LAN

1 x SPDIF

1 x AV

1 x HDMI

1 x RS232

1 x LED IR

1 x DC 12V

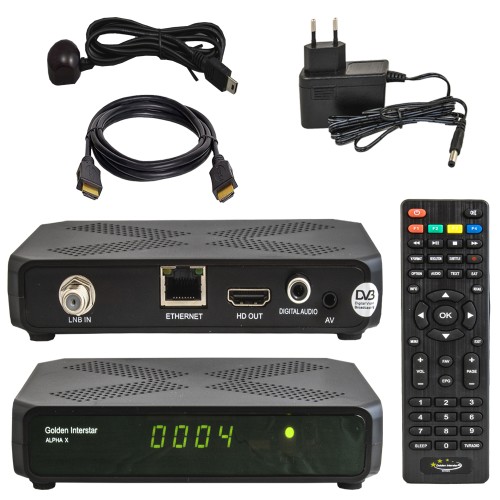

The set contents

1x Golden Interstar ALPHA X - DVB-S2 H.265 Linux

2x Batteries

1x Power supply

1x HDMI Cable

1x IR Cable

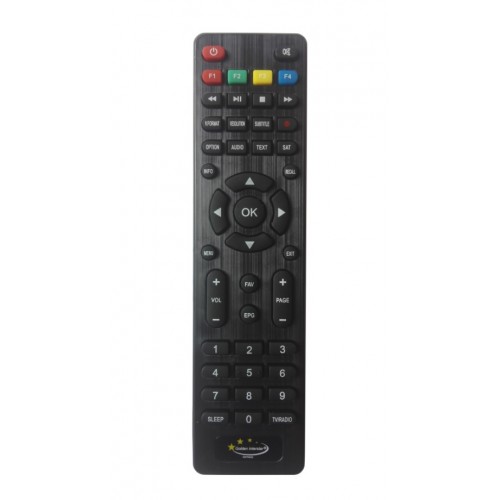

1x Remote Control

1x Manual
