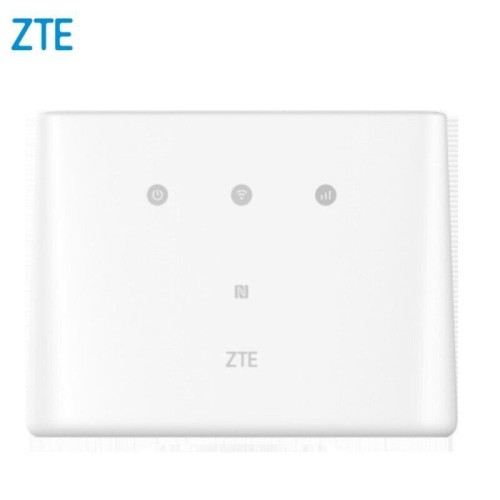

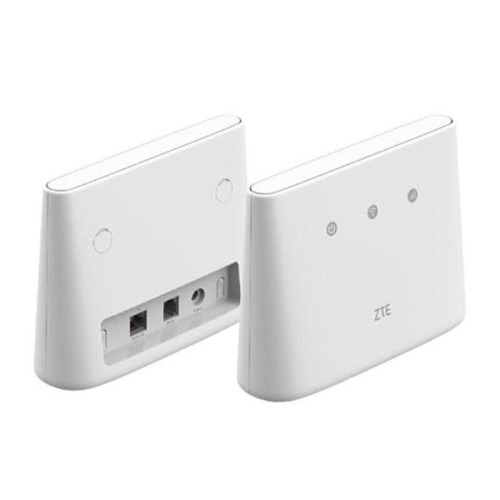

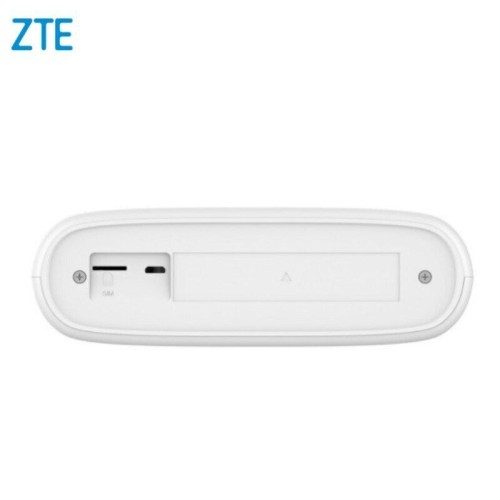

ZTE MF293N - 4G LTE WiFi Router

ZTE MF293N

4G LTE WiFi Router

ZTE MF293N is a new 4G LTE Cat4 mobile WiFi router which supports download speeds up to 150Mbps and upload speeds up to 50Mbps. Up to 32 wireless devices could connected with ZTE MF293N wireless router. It supports WiFi 802.11b/g/n 2x2 MIMO and there are two SMA connectors for external antennas.

Features

• LTE DL 150Mbps, UL 50Mbps
• Support up to 32 WiFi-enabled devices
• WiFi 802.11b/g/n, 2 x 2 MIMO, 2.4 GHz
• Two connectors for external antennas (Not included)


Technical Specifications

4G LTE Performance

Speeds up to 150 Mbps

Works with any SIM card from any operator

Wi-Fi performance

Speeds up to 300 Mbps

IEEE 802.11b/g/n

300 Mbps @ 2.4 GHz

LTE Category: Cat 4

Network Type:

              T4G: FDD-LTE B1/B2/B3/B5/B7/B8/B20/B28/B38/B40/B41

              TDD-LTE B38/B39/B40/B41

              3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B2/B5/B8

              2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900)

Standards: IEEE 802.11b/g/n

Signal Rate: 300 Mbit/s at 2.4GHz

Connections

1 x RJ45 (FE, WAN/LAN)

1 x RJ11 (FXS, CSFB/VoLTE/VoIP)

1 x SIM Socket (4FF)

2 x SMA (external antenna) (Not included)

Hardware

Ethernet Ports: 1x 10/100M LAN port

Buttons: WPS, Reset

LEDs: Power, Wi-Fi, Mobile Network Signal Level

Power adapter: External power supply, 12V / 1A DC

The set contents

1x ZTE MF293N - 4G LTE WiFi Router

1x RJ45 Ethernet Cable

1 x DC470 (DC12V)

1x Quick Installation Guide
