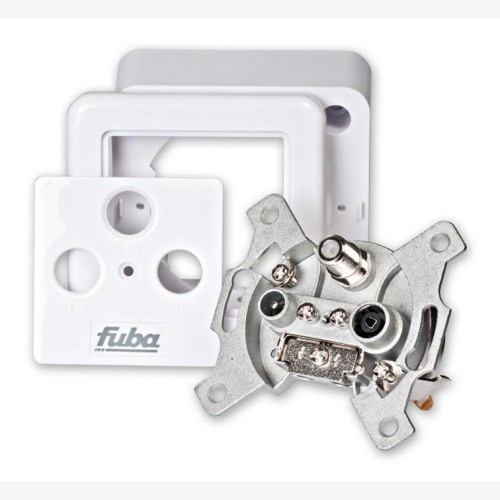

Fuba GAD 310 DC - Pass Socket

Fuba GAD 310 DC

Sat, TV and Radio Pass Socket

The Fuba GAD 310 DC is a DC pass socket with three separate satellite, TV and radio connections.It has a solid metal pressure housing and has a surface-mounted frame and a cover plate.

Product overview

• Solid metal pressure housing
• With pearl white surface and cover plate
• With DC passage
• Frequency range 5 ... 2400 MHz

Features

Connections: Sat: F jack, TV: IEC plug, RF: IEC jack

Colour: pearl white

Connection loss 0.5 ... 450 MHz: 11.0 dB

Connection loss 470 ... 862 MHz: 11.0 dB

Connection loss 950 ... 2150 MHz: 12.0 dB

Execution: 3 outputs

Transmission loss 470 ... 862 MHz <2.5 dB

Transmission loss 950 ... 2150 MHz <2.5 dB

Shielding measure up to 300 MHz > 75 dB

Shielding factor 300 ... 470 MHz > 70 dB

Shielding level 470 ... 950 MHz > 65dB

Shielding factor 950 ... 2150 MHz > 55dB

Transmission loss 0.5 ... 450 MHz <1.5 ... 2.5 dB

Decoupling > 32 dB

The set contents

1x Fuba GAD 310 DC - Pass Socket
