Fuba OAE 940 - Quattro Optical Switch Termination Unit for as 4 receivers

Fuba OAE 940

Quattro Optical Termination Unit for as 4 receivers

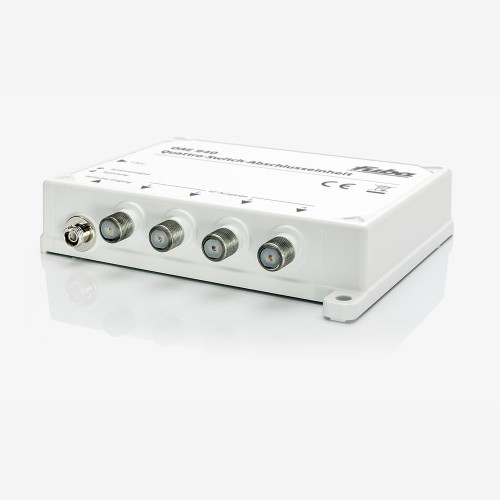

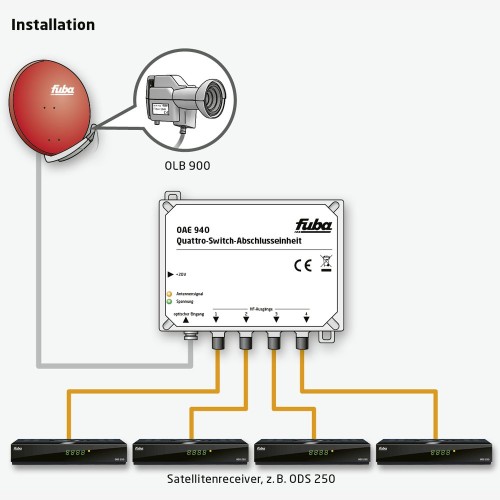

The Fuba OAE 940 is an optical quattro switch termination unit with DVB-T, DAB and FM for direct connection of 4 devices, e.g. satellite receivers.

Features

Product type: Quattro Optical Terminal for up to 4 receivers

Input: 1 (optical, FC / PC)

Outputs: 4

Maximum Input Signal Level: Satellite: Maximum -15 dBm ... +/- 0 dBm

Output frequency range: SAT: 950 ... 2150 MHz, Terrestrial: FM 88 ... 108 MHz, DAB 147 ... 240 MHz, DTT 470 ... 790 MHz

Maximum level of terrestrial output signal: approximately 75 dBμV

Wavelength 1100 nm ... 1650 nm

Switching method: 13/18 V, 0/22 KHz

Input: Maximum 225 mA

Output power: + 70 dBmW

Power supply: 11V to 20V via receiver or external power supply

The set contents

1x Fuba OAE 940 Quattro Optical Termination Unit for as 4 receivers.
