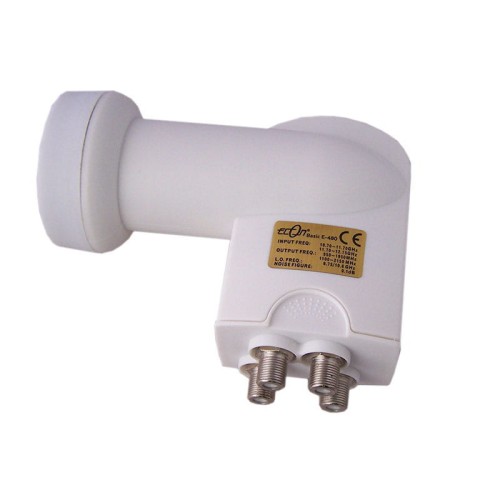

Econ E-480 - Quad Universal Basic LNB

Econ E-480

Quad Universal LNB that supports 4K transmissions

Econ E-480 is a high quality product with a very low noise figure of 0.1dB that gives you the best signal quality and sharper picture. It has been specially selected to ensure a very low noise level. This LNB sets new standards in terms of quality and reliability. It allows the reception of a satellite and the connection to a receiver directly. It supports satellite signal reception in FullHD, 4K, 3D quality and guarantees excellent signal reproduction.

Product overview

• High performance technology
• Excellent reception of digital signals
• Ideal for system expandability
• Robust and weather resistant

Features

Outputs: 4

Noise figure: 0.1dB

Reflector Type: Offset

Clamp size: 40mm

Input frequency range: 10.7GHz - 11.7 GHz (low band)

Input frequency range: 11.7GHz - 12.7 GHz (high band)

Output frequency range: 950 MHz - 1950 MHz (low band)

Output frequency range: 1100 MHz - 2150 MHz (high band)

LO Frequency: 9.75GHz (low band) / 10.6GHz (high band)

LO Frequency Phase Noise: -60dBc / Hz @ 1KHz (Max) / -85dBc / Hz @ 10KHz (Max) / -95dBc @ 100KHz (Max)

Conversion gain: 58-63dB

100% waterproof

The set contents

1x Econ E-480 - Quad Universal Basic LNB
