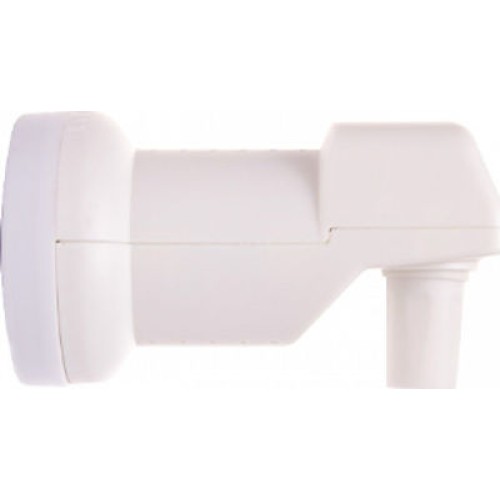

Econ E-100 - Single Universal Basic LNB

Econ E-100

Single Universal LNB that supports 4K transmissions

Econ E-100 is a high quality product with a very low noise figure of 0.1dB that gives you the best signal quality and sharper picture. It has been specially selected to ensure a very low noise level. This LNB sets new standards in terms of quality and reliability. It allows the reception of a satellite and the connection to a receiver directly. It supports satellite signal reception in FullHD, 4K, 3D quality and guarantees excellent signal reproduction.

Product overview

• High performance technology
• Excellent reception of digital signals
• Ideal for system expandability
• Robust and weather resistant

Features

Legacy Outputs: 1

Noise Figure: 0.1dB

Reflector Type: Offset

Clamp size: 40mm

Input Frequency Range: 10.7GHz - 11.7 GHz (Low Band)

Input Frequency Range: 11.7GHz - 12.7 GHz (High Band)

Output Frequency Range: 950 MHz - 1950MHz (Low Band)

Output Frequency Range: 1100 MHz - 2150 MHz (High Band)

L.O. Frequency: 9.75 GHz (Low Band) / 10.6GHz (High Band)

L.O. Frequency Phase Noise: -60dBc/Hz @ 1KHz (Max) / -85dBc/Hz @10KHz (Max) / -95dBc @ 100KHz (Max)

Conversion Gain: 58-63dB

Gain Flatness 26MHz Bandwidth: +/-0.5dB/36MHz

Polarity Switching Voltage: Horizontal: 16-18V / Vertical: 12-14.5V

High Band Switching: 22KHz +/- 4KHz

Cross Pol. Isolation: >=18dB (Typ.)

Image Rejection: 40dB (Min)

Output Spurious: <-60dBm

Power Consumption: 80mA (Typ.)

Output Connector Type: 75Ohm - F Type (Female)

Operating Temperature Range: -40ºC - +65ºC

The set contents

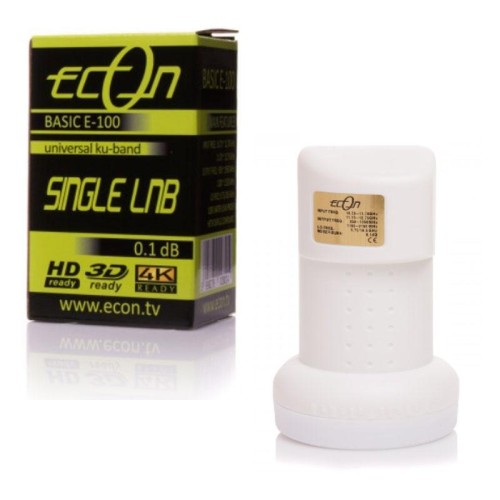

1x Econ E-100 - Single Universal Basic LNB
