Lokmann 1382 - RG59 & Power cable 100m, Copper

Lokmann 1382

RG59 & Power cable 100m, Copper

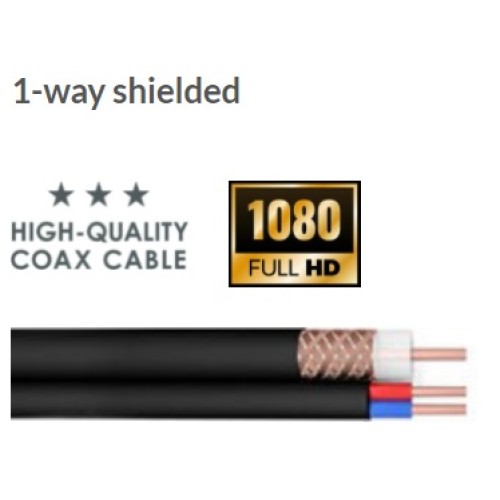

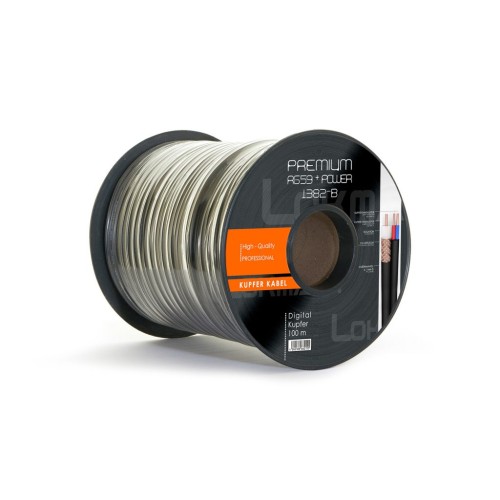

The Lokmann 1382 is a high-quality coaxial cable - with a diameter of 2x6.1 mm and Power Cable. Available in a handy circle with a length of 100 m.It is characterized by good technical parameters - one fold shielded and an inner coductor RG59 made with copper with a diameter of 0.6mm.

Features

Construction  data

Cable length (m): 100

Inner conductor (mm):  RG59: 0.6 mm copper

Isolation: 3.7 mm PE

Braid shielding: CU braid

Outer jacket: 2x 6.1 mm PVC +/- 0.2

Mechanical data

UV-resistant: yes.

Water Resistant: Yes

Temperature resistant: yes.

Age-resistant: yes.

Metre marking: yes.

Certification: CE,ROHS, REACH and flammable Grads

Electrical data

Impedance: 75 ohms

Shortening factor: 0.85 v/c

Insulation: 3,7 mm FPE

Inner conductor (mm):  RG59: 0.6 mm copper

Outer sheath: PVC

With metre marking

Attenuation (20°C)

1 MHz -  1,30 dB

10 MHz -  3,50 dB

100 MHz -  10,05 dB

200 MHz - 15,30 dB

350 MHz - 19,80 dB

450 MHz - 23,20 dB

The set contents

1x Lokmann 1382 - RG59 & Power cable 100m, Copper
