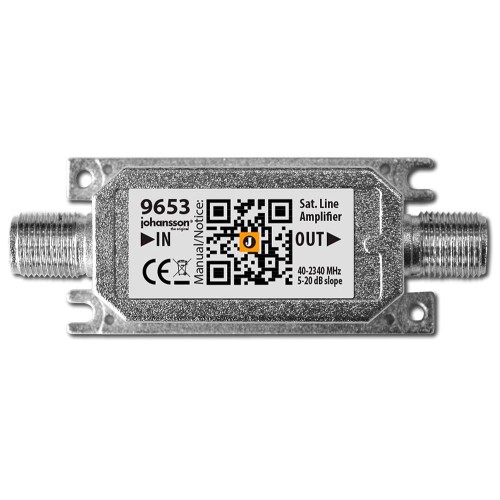

Johansson 9653 - Wideband SAT line amplifier

Johansson 9653

Wideband SAT line amplifier

Johansson Wideband line amplifiers SAT

Features

Boosting the satellite signals to compensate coaxial cable losses.

Frequency range (MHz): 40 - 2400

Gain (dB): 5 @ 40 MHz

                   6 @ 290 MHz

                   10 @ 950 MHz

                   20 @ 2150 MHz

                   20 @ 2340 MHz

Noise figure (dB): 7

Max. Output level (dBµV): 110

Power supply (V): 13-18 / 60mA

DC power pass (mA): 500 max.

Dimensions (mm): 68 x 26 x 16
