Fracarro MAP313 - Mast amplifier

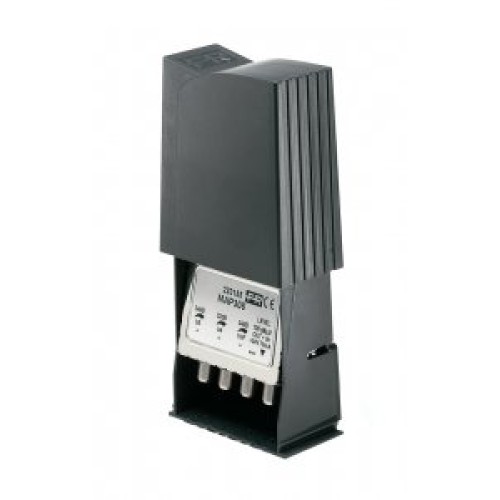

Fracarro MAP313

Mast amplifier for terrestrial digital and analog channels

Fracarro MAP313 is a mast amplifier with three inputs. Suitable to amplify and mix together signals coming from different aerial on medium and small installation. The product has a metal chassis with F female connector. The innovative plastic housing system locks the cover in place and rotates the case to guarantee safe and quick installation. Adjustable plastic strap for mast mounting Ø 60mm max.(WITHOUT POWER SUPPLY PSU412)

Key points

• Three inputs: 1 x VHF and 2 x UHF.
• High gain
• High output level
• Low Noise figure
• Completely shielded
• Simple and easy installation

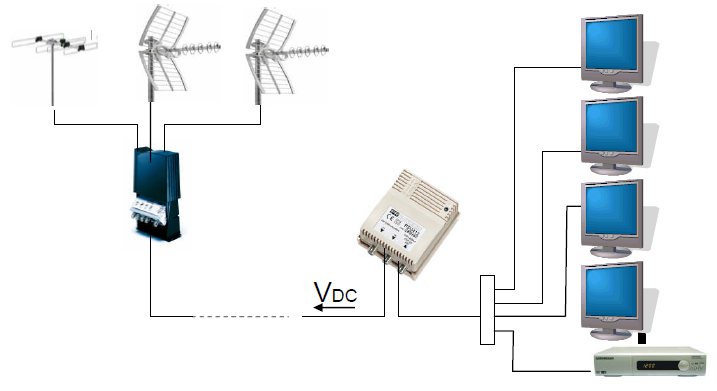

Installation example

Feautures

General

Inputs: 3 (1 x VHF and 2 x UHF)

Outputs: 1

Input 1 VHF band

Bandwidth (MHz): 47 ÷ 230 (FM band can be filtered via jumper)

Gain (dB): 24

Gain Adjustment (dB): 15

Noise Figure (dB): 5

Maximum output Level (IM3 -60dBc 3 tones) dBμV: 108

Maximum output Level (IM3 -35dBc 2 tones), only DTT signals dBuV: 115

Input 2 UHF band

Bandwidth (MHz): 470 ÷ 862

Gain (dB): 30

Gain Adjustment (dB): 15

Noise Figure (dB): 8

Maximum output Level (IM3 -60dBc 3 tones) dBμV: 108

Maximum output Level (IM3 -35dBc 2 tones), only DTT signals dBuV: 115

Input 3 UHF band

Bandwidth (MHz): 470 ÷ 862

Gain (dB): 30

Gain Adjustment (dB): 15

Noise Figure (dB): 8

Maximum output Level (IM3 -60dBc 3 tones) dBμV: 108

Maximum output Level (IM3 -35dBc 2 tones), only DTT signals dBuV: 115

Main Features

Supply Voltage (V): 12

Κατανάλωση ρεύματος (mA): 80

Connection type: F θηλυκό

The set contents

1x MAP313

1x Plastic strap

1x  Instruction Manual
