Iskra P20F DTT/G

Iskra P20F DTT/G

Outdoor Antenna

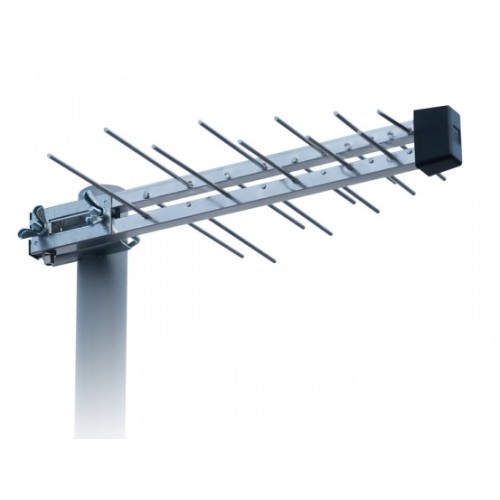

The Iskra P20F DTT/G is an UHF Antenna with logarithmic band 21-69 with built-in amplifier DIGI-LOG 14VU and 20 Elements.

Feautures

• Frequency range: CH 21-69 470 - 862 Mhz
• Band: UHF
• Impedance: 75 Ohm
• No of Elements: 20
• Gain: 22,5 db
• Front - Back ratio: 20 - 30 db
• Length: 440 mm
• F Connector: Yes
• Material : Aluminioum

Technical Details of built in Amplifier DIGI-LOG 14VU:

• Frequency range: Ch.5-69 (174-862 MHz)
• Amplification: 16 dB @ 5-24 VDC
• Noise figure: 2 dB
• Power supply: 25 mA @ 5-24 VDC (OPTIONAL)
• Connector: »F« female
• *Antenna with built-in amplifier DIGI-LOG 14VU is receiving signals only if amplifier is power supplied.
• **It can be supplied from outside power supply or directly from DVB-T receiver. (OPTIONAL)
• ***Power supply is provided through the same coax. cable as reception signal.
