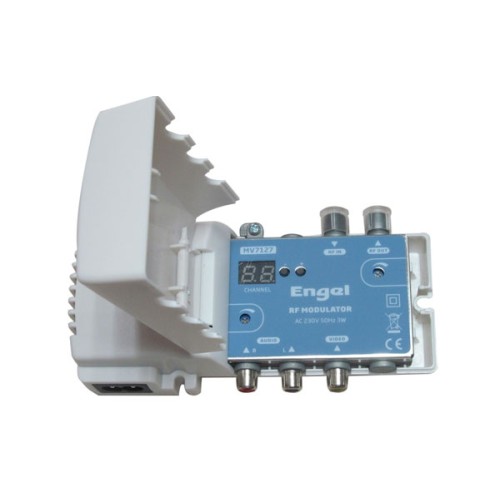

Engel MV7127 - VHF-UHF Modulator
Engel MV7127 - VHF-UHF Modulator
Multiroom audiovisual
With Engel MV7127 analogue modulator you can enjoy your audiovisual devices from any room in your home. It modulates the signal coming from Audio and Video sources (DVD, TDT, SAT, VCR, etc.) by mixing it with the antenna RF signals to send them through the coaxial cable to other televisions of the house. Channel search by push buttons and display.
Feautures of Analogue Modulator
- Inputs: RCA + RF
- Outputs: 1 x RF
- Range Frequency: 47 – 862 MHz
- High Bd: 230 ~ 300MHz / UHF: 470 ~ 862MHz.
- Maximum Output Level: 85 dBμV

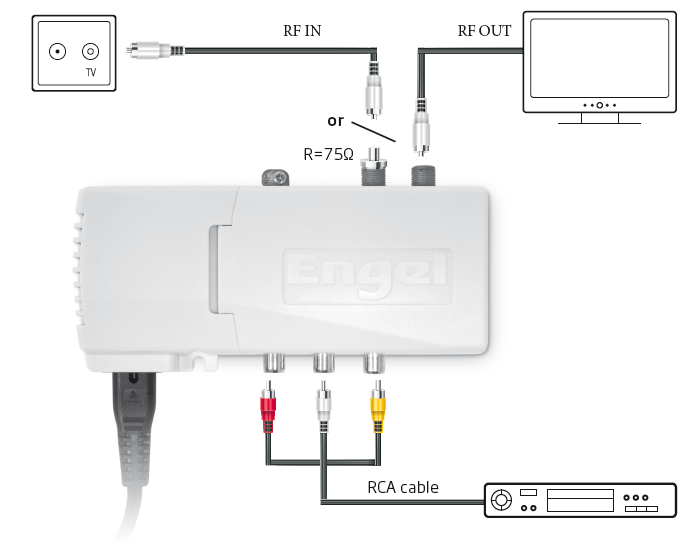

How it works?
Features
Audio Input
Frequency range: 20Hz-15KHz
Level/impedance/deviation: 775mV RMS/10K/50KHz
Level adjustment: +1/±14dB
RF Output
Level (typical)/impedance: 85dBμV/75Ω
Output Channels: see tables 1-10
RF level adjustment: 0/-15dB
Signal/ noise ratio,weighted: ≥-55dB
II,III intermodulation distortion: <-60dB
Amplitude modulation depth,typical: 81%
Video frequency response: ±1dB (0.5/+4.0MHz);+1/-2dB(4.0/-4.8MHz)
A/V ratio: 12±3dB/16±3dB
Carriers accuracy: ±50KHz
Frequency unstability: 10 -5
Power
Power consumption: 230V~50Hz 3W
The set contents
1x Engel MV7127 - VHF-UHF Modulator
1x RCA to SCART cable
1x Power supply cable
1x Instruction Manual
